Few things frustrate a candy plant manager more than the sound of a depositor running perfectly—only to watch candies tear, tail, or cling to the mold cavity at the exit. Mold-sticking is one of the most common, yet most misdiagnosed, issues on both hard candy depositing lines and gummy candy production lines. Operators often blame the recipe first, but in most audit cases we see , the root cause sits in the machine parameters, not the sugar.
The good news: sticking is rarely unfixable. Before you reformulate or change starch levels, a systematic pass through your equipment settings can remove 80–90% of sticking incidents. Below is the engineer’s checklist of equipment-side adjustments that reliably relieve mold-sticking in real factories.
The cooling tunnel is culprit #1 in sticking cases—especially when candy leaves the mold warm or surface-soft.
Hard candy: If exit temperature is above 32 °C, the glass is not fully set; it peels off the cavity wall taking a skin layer with it. Lower the inlet zone by 3–5 °C, extend dwell time 10–15%, or slow belt speed 5%. Target core exit 28–30 °C.
Gummy candy: Sticking usually means gel set is incomplete or surface is sweating. Raise mid-zone RH control to 50±5%, ensure exit candy temp is 1–2 °C above shop dew point (prevents condensation that feels like stickiness), and confirm glycol inlet is 12–15 °（not 8 °）to avoid skinning.
Check airflow symmetry: Uneven laminar flow cools one side faster → warping + local adhesion. Rebalance damper positions.
A 5-minute tunnel re-profile often fixes what a week of recipe tweaks could not.
Sticking is frequently caused before cooling: syrup strings bridge mold edge to nozzle, then bake onto the cavity rim.
Cut-off time: Servo depositors should close the shut-off valve in <0.05 s. If your PLC shows 0.1 s or uses pneumatic delay, you get tails. Tighten the “close delay” parameter.
Nozzle descent depth: Nozzle should dip 2–4 mm into cavity, not touch bottom. Too high = splash and stringing; too low = mechanical scrape that leaves micro-film on mold.
Shot volume vs. cavity fill: Overfill by >5% forces syrup up the vent groove, where it sticks and caramelizes. Reduce metering pump RPM 3–5% and re-zero the servo stroke.
On a hard candy depositing machine, a 2% volume reduction often eliminates rim sticking entirely.
Molds are not passive. If the mold plate itself is 2 °C warmer than setpoint, hard candy won’t release; if 3 °C colder than design, gummy skins stick.
Hard candy steel molds: Confirm glycol circuit is <35 °C and flow ≥ 2 m/s. Low flow = hot spots.
Silicone gummy molds: They insulate. You may need to drop coolant 2 °C or increase zone-1 dwell. If mold surface reads 24 °C but candy sticks, suspect internal mold temperature sensor drift—calibrate.
Starch molds (Mogul): Starch moisture >6% = sticking. Not strictly “equipment adjustment”, but the starch conditioner/dehumidifier setting is part of your line—drop starch RH to 4–5%.
On starch-free gummy lines, the demolding machine is where sticking becomes visible.
Ejector pin timing: Pins must rise after candy reached 65–70% of final gel firmness. Ejecting early = stretch and stick; late = vacuum suction to cavity. Advance or delay cam angle by 2–3° and test.
Pin travel and speed: Too fast = shear tear; too slow = candy re-adheres. Set pin speed to 60–70% of belt linear speed.
Air-assist: Add a 0.2-second compressed-air pulse (0.3 bar) at pin retraction. This breaks meniscus suction—standard fix for “kissing” gummies that cling.
Hard candy demold: Usually air-knife or vibratory. If candy sticks, raise air knife pressure 0.1 bar or add a 2 Hz vibration for 0.5 s at mold flip.

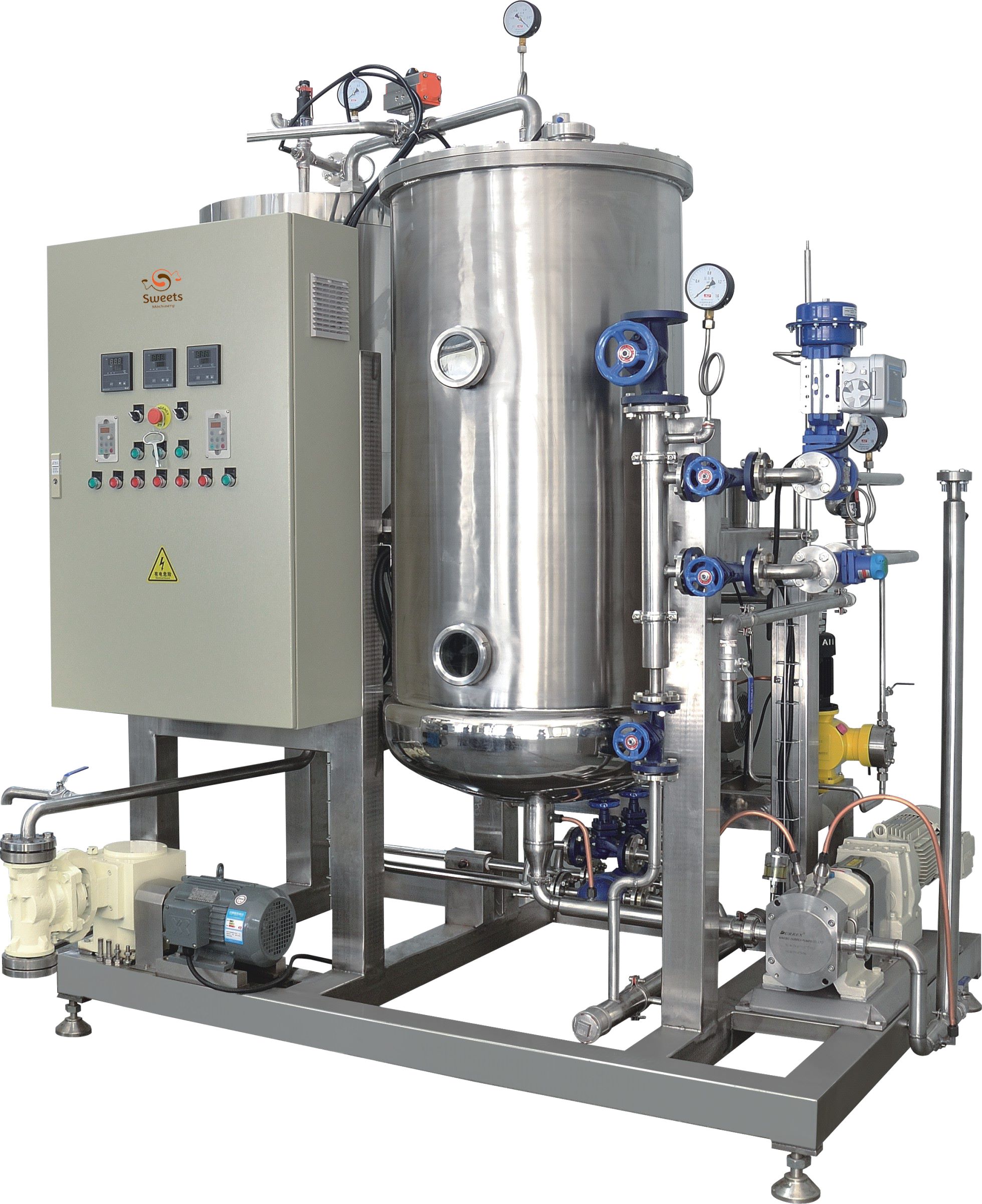

A vacuum cooker set 1% off can quietly cause sticking.
Hard candy: Final moisture must be 1.2–1.8%. If cooker vacuum is 0.2 bar too high (shallow vacuum), moisture creeps to 2.5% → candy stays plastic at mold exit → sticks. Lower absolute pressure 10 kPa, extend cook 8 seconds.
Gummy: Overcook by 0.5 °Brix and gel sets too fast in nozzle (pre-gel), causing deposit strings that bake onto mold rim. Drop cooker outlet solids 0.3% and recheck.
Cleaning residue: Scale inside cooker jacket insulates → real syrup temp 3 °C lower than display. Descale or your “recipe is fine” assumption is wrong.
Sometimes the fix is mechanical, not digital.
Mold polish: Hard candy molds should be Ra ≤ 0.4 µm. If worn to 0.8, sticking returns. Repolish or replace plates.
Silicone mold release: For gummies, a micro-spray of MCT oil or lecithin via misting bar before deposit reduces sticking 40%. Set misting duty cycle to 2 s every 30 s, not continuous.
Starch dusting (Mogul): If using starch molding, ensure dusting drum covers all cavity walls. Partial coverage = sticking on bare spots.
Sticking is not always in the mold—it shows there.
Transfer belt material: PU belt at 40 °C softens and grabs warm hard candy. Switch to PTFE-coated fiberglass or SS slat.
Belt tension: Loose belt slips under candy → friction heat → local re-softening → stick. Tension to 2% stretch.
Cooling belt pre-chill: If candy transfers from mold to cooling belt, the belt itself should be 20–25 °C, not ambient 30 °C. Add a small precool zone.
Symptom | Hard candy fix | Gummy fix |
Rim sticking | Cut-off <0.05 s, −2% volume | N/A |
Cavity center stick | Mold glycol 2 °C lower | Pectin pH +0.1, eject 3° later |
Tearing at demold | Air knife +0.1 bar | Pin speed −10%, air pulse |
Condensation feel | Exit temp +2 °C vs dew point | RH 50%, exit temp = dew+1 |
Operators who “feel” the fix cost you batches. Use the HMI to log:
Mold exit temperature (IR sensor)
Coolant supply temp & flow
Depositor cut-off time (ms)
Demold pin cam angle
Cooker vacuum & outlet Brix
A 3-shift log usually reveals the sticking started when coolant flow dropped 15% after a pump seal leak. No recipe change needed—just fix the pump.
If after tuning tunnel, depositor, mold temp, demolder, and cooker the sticking persists, the issue is mechanical wear: worn shutter valves, pitted mold cavities, bent ejector pins, or wrong mold grade (304 in acidic gummy line). That is not adjustment—it is parts replacement. At Ningbo Sweets Machinery we keep these spares stocked because sticking is a wear symptom, not a mystery.
Mold-sticking rarely means “bad candy.” It means one of five equipment subsystems drifted: cooling curve, deposit cut-off, mold thermal state, demold timing, or cooker solids. Walk the line in that order, change one variable at a time, and 9 times out of 10 the candy drops clean.
Treat your candy manufacturing equipment as a tuned instrument. When the notes stick, tune the strings before rewriting the song.
