It’s the ultimate question for startup confectioners and seasoned factory managers alike: “Why can’t I just buy one machine to make both hard candy and gummies?” On the surface, it seems like a logical way to maximize ROI. After all, they are both popular sugar-based treats. However, in the world of industrial candy manufacturing, “one-size-fits-all” is a myth that leads to costly downtime, product waste, and mechanical failure. The reason isn’t marketing hype—it’s physics. Hard candy and gummy candy exist at opposite ends of the moisture and temperature spectrum. Trying to force one piece of equipment to handle both is like asking a freezer to bake bread.
This article exposes the equipment truth behind the hard candy vs. gummy candy production debate, breaking down exactly why your candy manufacturing equipment needs to be specialized for each unique process.
To understand the machinery, you must first understand the product.
Technically, hard candy is an amorphous solid, or “sugar glass.” It contains less than 2% moisture. To get there, sugar and glucose syrup are subjected to extreme heat (150–160°C) to drive off virtually all water. The goal is to create a brittle, transparent structure that snaps when you bite it. Any residual moisture is a defect that causes“sanding” (crystallization).
Gummies are hydrocolloid gels. They rely on agents like gelatin, pectin, or agar to trap water (15–25% moisture) in a three-dimensional network. The cooking process is much gentler (80–110°C). Here, the goal is not to remove water, but to manage it. Too little water makes them tough; too much makes them susceptible to mold.
Because these two products fight against each other—one demanding intense dehydration, the other demanding moisture retention—the equipment designed to handle them must operate under completely different physical conditions.
A dedicated hard candy production line is engineered for high temperatures and rapid phase changes.
The star of the show is the Rotary Vacuum Cooker . Unlike atmospheric cookers, vacuum technology allows for efficient water removal at lower temperatures, preventing caramelization and burnt flavors. The internal surfaces must withstand high pressure and heat while maintaining a mirror finish to prevent sugar buildup.
In modern plants, the hard candy depositing machine has replaced old-school rope formers. These machines feature heated hoppers and nozzles to keep the supersaturated sugar liquid flowing smoothly until the very second it hits the mold. If the temperature drops even slightly, the sugar solidifies in the pipes, causing a total shutdown.
Immediately after depositing, the candy enters a cooling tunnel. The transition from 150℃ to room temperature must be rapid to lock the sugar into its glassy state. These tunnels feature high-velocity fans and powerful compressors—systems you would never see on a gummy line.
Conversely, a gummy candy production line is a study in precision fluid dynamics and environmental control.
Before any cooking occurs, dry gelatin or pectin must be hydrated in a pre-mixer. Pectin requires specific pH adjustments to activate. This stage doesn't exist in hard candy production because hard candy uses no gelling agents.
A jelly candy vacuum cooker operates at significantly lower temperatures. Its purpose is to concentrate the solids to a specific range (78–82%) without degrading the protein structure of the gelatin. Overheating here ruins the entire batch, resulting in gummies that never set.

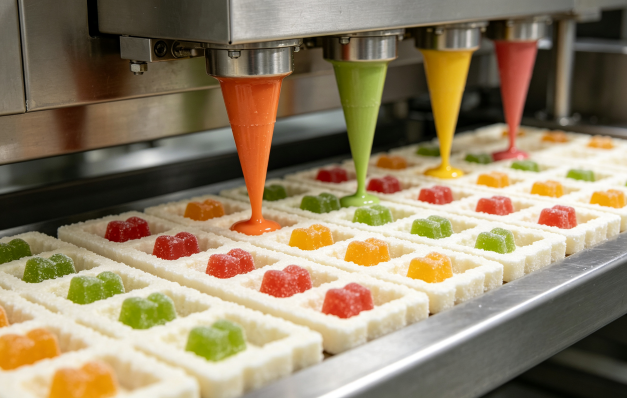

Traditional Mogul plants use starch as a molding agent. Modern lines use silicone molds and sophisticated demolding machines. These systems require mechanical precision to extract the delicate, semi-solid candies without distorting their shape.
Perhaps the biggest difference lies in post-processing. Fresh gummies cannot be packaged immediately. They must spend 24–72 hours in a conditioning room. This controlled environment allows moisture to equalize throughout the candy. Hard candy lines have no equivalent to this massive footprint requirement. Finally, an oiling drum applies a barrier coating to prevent sticking.
Now, let’s address the core question: Why can’t one machine do both?
Temperature Warfare: Hard candy lines require heating jackets on every pipe and pump to prevent solidification. Gummy lines require cooling jackets to prevent the gel from setting prematurely in the tubes. You cannot have a pipe that is simultaneously heated and cooled.
Material Handling: Hard candy is non-stick when molten. Gummy slurry is notoriously sticky and viscous. A gummy depositor requires specialized Teflon coatings and positive displacement pumps. Using a hard candy pump for gummies results in cavitation and flow inconsistencies.
Cleaning Nightmares: Hard candy is water-soluble and cleans easily with hot water. Gummy residue, especially from gelatin, is protein-based and requires high-pressure cleaning with caustic soda. A machine optimized for a quick water rinse (hard candy) will harbor bacteria if used for gummies without a rigorous CIP (Clean-in-Place) system.
Some suppliers might try to sell you a “universal depositor.” While the servo-driven depositing head itself can physically move both types of slurry, it is only one small part of the system. Without the correct auxiliary equipment—specifically the right cooker, the right cooling system, and the right finishing equipment—that depositor is useless. You aren't buying a machine; you're buying a system.
When configuring a candy production line for hard candy and gummy candy, avoid these pitfalls:
Ignoring Utilities: Hard candy needs steam; gummies need glycol chillers and dehumidifiers. Buyers often budget for the machines but forget the utility room.
Underestimating Space: A gummy line requires significantly more floorspace due to the conditioning rooms. Trying to squeeze a gummy operation into a hard candy factory layout leads to logistical chaos.
Focusing Only on CAPEX: Cheaper machines lack PID temperature controls. In candy making, a 2-degree variance can ruin a batch. Invest in PLC-controlled automation to save on waste (OPEX).
The future isn't about one machine doing everything; it's about modular lines. Modern factories are adopting systems where the depositor is central, but the feeding and cooling modules can be swapped out. This provides flexibility without compromising the specialized engineering required for each product type.
So, why can’t one candy machine make both hard candy and gummies? Because the laws of physics don't allow it. Hard candy fights to remove moisture through intense heat; gummies fight to maintain moisture through gel structure.
Investing in specialized equipment for each process isn't an expense; it's an investment in product quality, consistency, and uptime. At Ningbo Sweets Machinery, we design automated candy production lines that respect these scientific truths. We don't sell "universal" myths; we engineer specialized solutions that maximize your yield.
Ready to stop guessing and start producing? Contact our engineering team today for a customized equipment proposal tailored to your specific recipes and production goals. This is our website: www.sweetsmachines.com
