Small-Capacity SWM-JCD-S Jelly Candy & Gummy Production Line 40-80kg/h

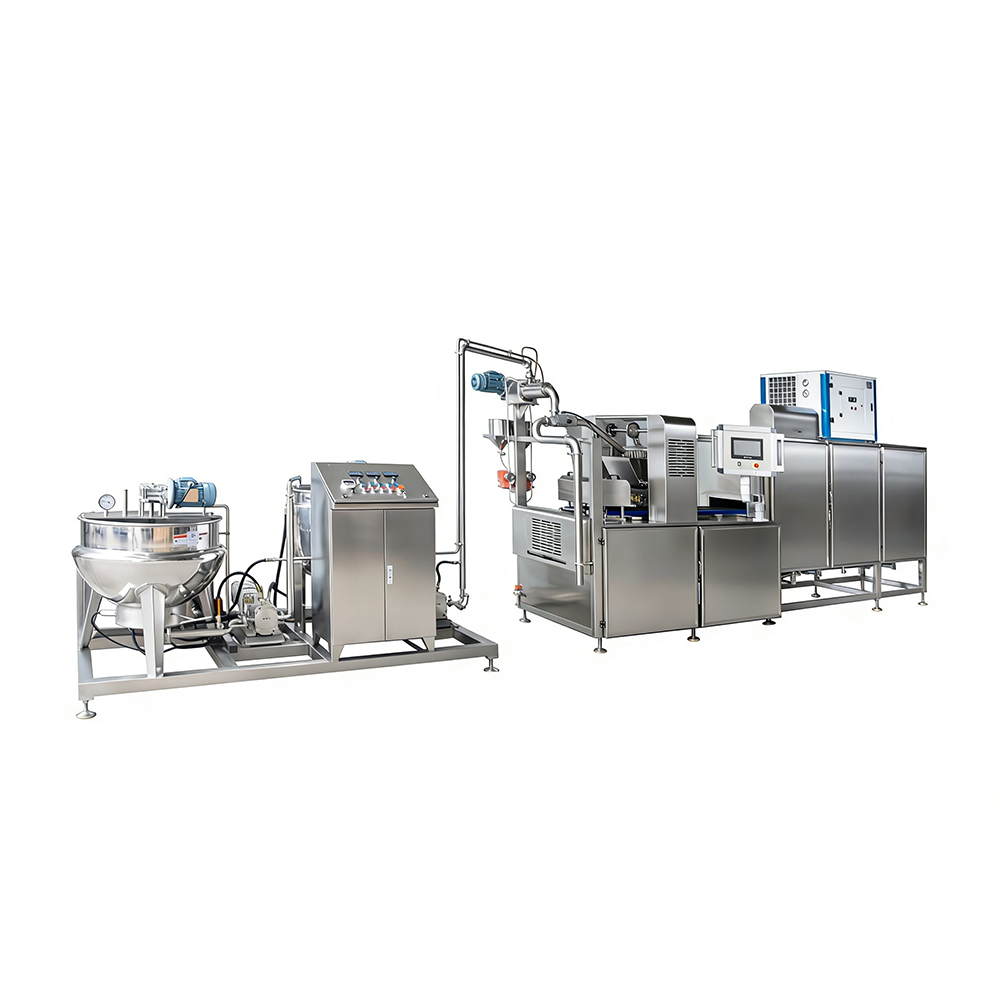

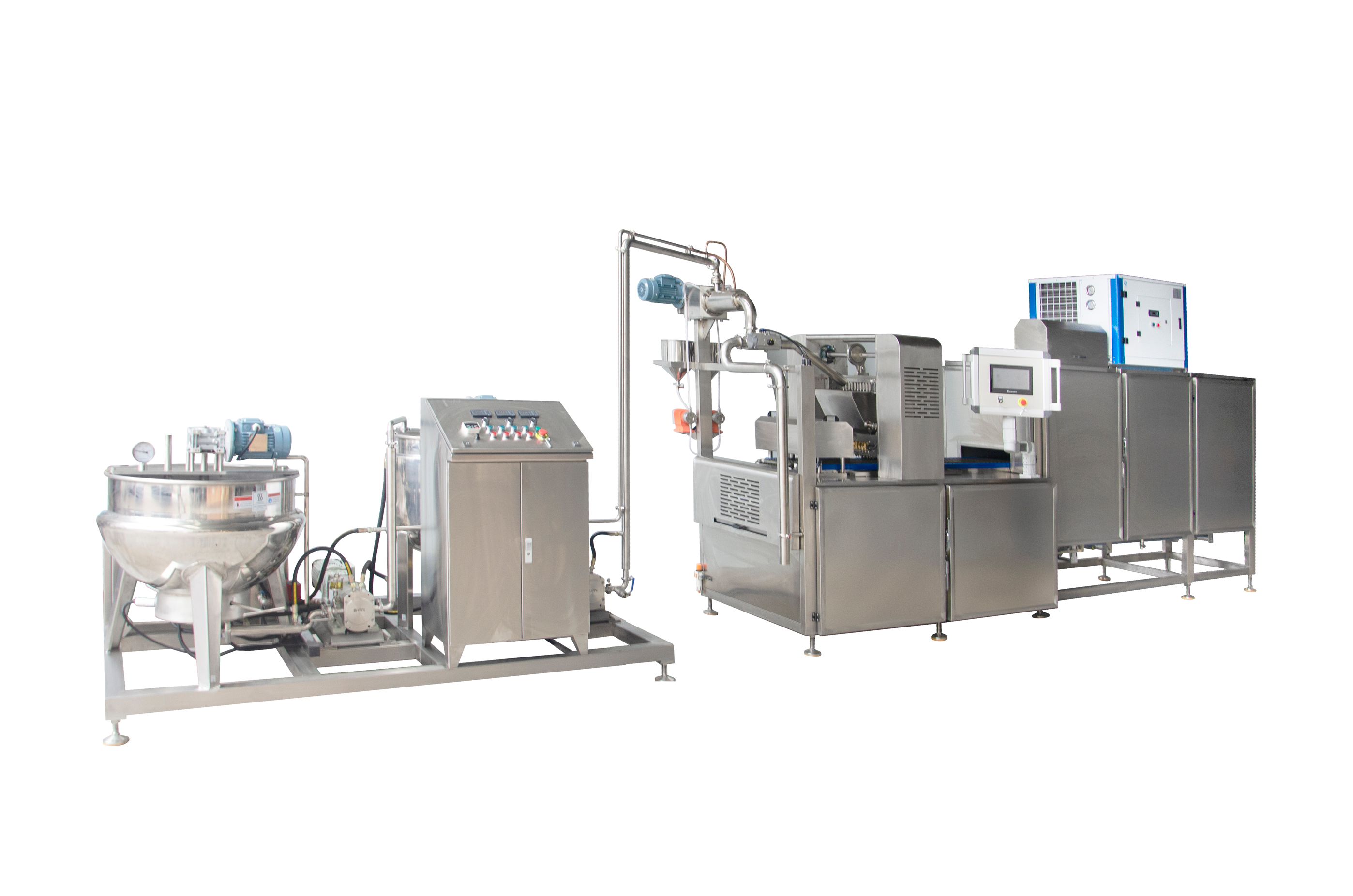

Small-Capacity SWM-JCD-S Soft Jelly & Gummy Production Machine 40-80kg/h

The SWM-JCD-S Jelly & Gummy depositing line is used primarily to produce soft pectin based jellies and chewy gelatin based gummies. Solid, striped, layered and center-filled jellies and gummies in either 2D, 3D or 4D are possible made by the line. The line is also capable of validation for all types of functional and pharmaceutical confectionery. Metal moulds or silicone moulds are used instead of starch moulds, compared with starch moguls, the process is completely hygienic and cost of investments is much lower.

This line comes with complete supporting parameters on steam, compressed air, water and power consumption. We offer custom mold OEM & ODM service and factory wholesale solutions for global candy manufacturers.

Quantity:
Availability:





Inquire Add to Basket

Model:
SWM-JCD-S
Brand:
Sweets Machinery
Code:
8438200000

Core advantages

Large Capacity Range: 40–80kg/h optional output to match small & large candy factories
Dual Control Options: Mechanical / PLC servo motion control two versions for selection
Multi-Function Molding: Produce transparent, striped, two-color, layered & center-filled hard candy
Stable Supporting Parameters: Complete steam, air, water & power matching system

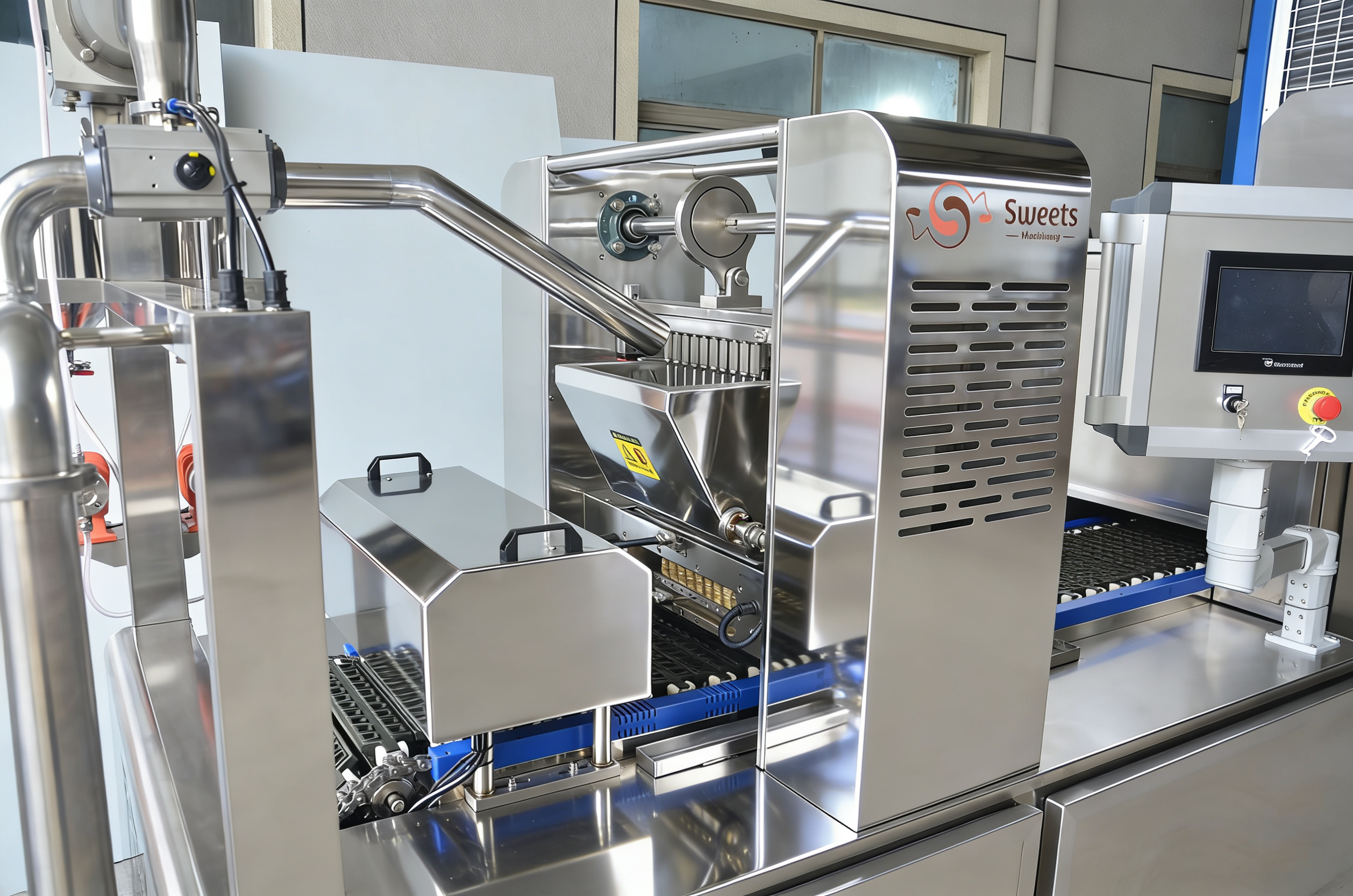

Continuous Depositing System: Continuous Syrup Depositing Matched with Microfilm Cooker, smooth candy surface
Custom OEM & ODM Service: Custom mold, layout & turnkey production line solution

Product Specification

Model	SWM-JCD-S
Production capacity	40-80kg/h
Steam consumption	450kg/h
Steam pressure	P﹤0.7Mpa
Compressed air consumption	0.3m³/min
Compressed air pressure	P=0.4-0.6Mpa
Water consumption	2200L/h
Power	30kw
Sizes of machine	9×1.3×2.55m
Weight of machine	3000kg

、

Application

Layered & Dual-Tone Jelly Candy

Multi-layer and two-tone designs, combining different color

and flavors

2-Color Striped & Swirl Jelly Candy

Eye-catching two-color swirl

and

striped patterns with consistent marbling

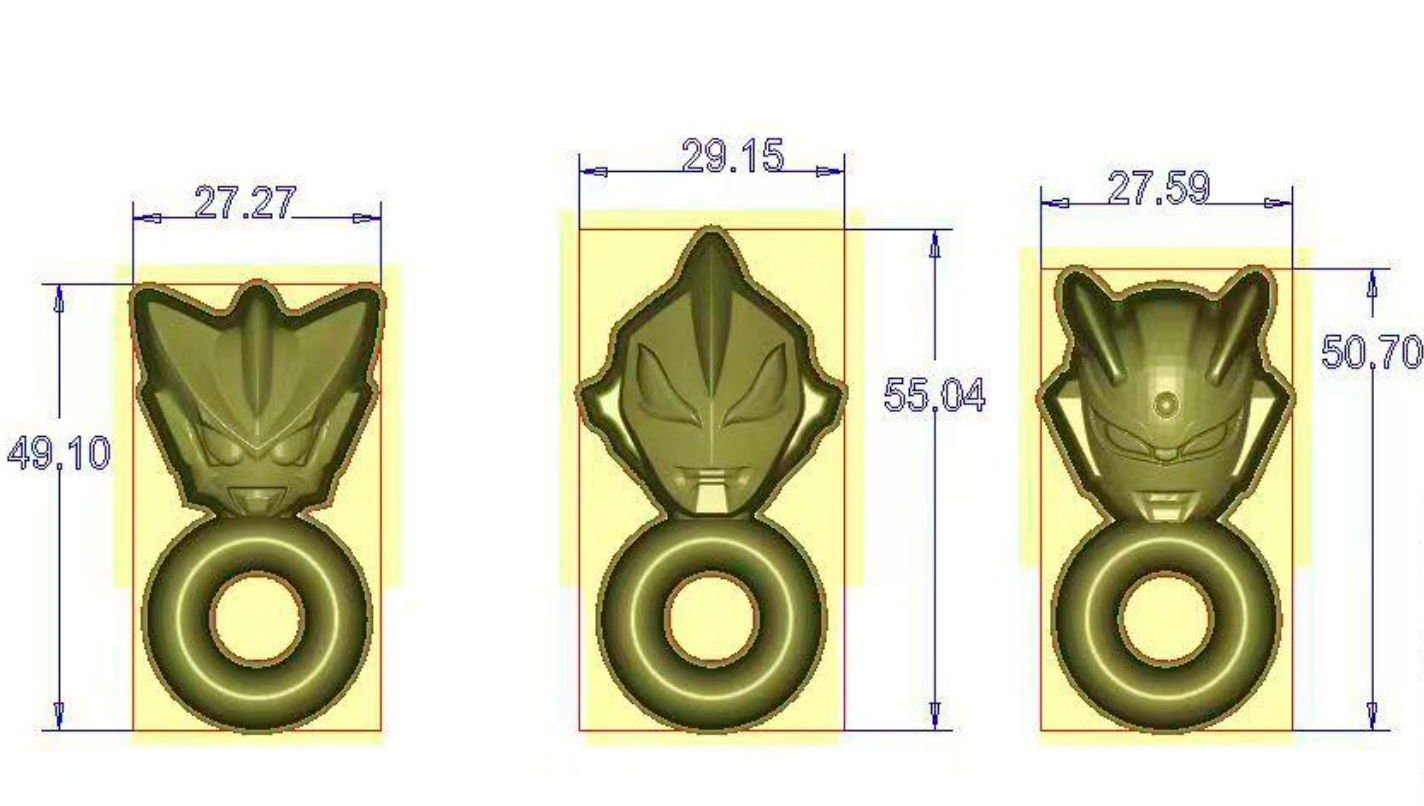

Special Shape & Custom Molded Candy

Custom molded candies like windmill lollipops, supporting personalized shapes

Clear & Solid Color Jelly Candy

Single-color transparent

and

opaque hard candies with smooth surface finish

Ningbo Sweets Machinery Co., Ltd.

We are a professional manufacturer dedicated to the design, development, and production of high-quality confectionery machinery.With over a decade of experience in the candy and chocolate processing equipment industry, we have built a solid reputation for delivering reliable, efficient, and cost-effective production solutions to customers worldwide.

Our product range covers complete production lines for hard candies, lollipops, toffees, caramels, and chocolates, as well as key supporting equipment such as microfilm cookers, depositing machines, and packaging systems. We have exported our machines to more than 40 countries and regions, serving both small-scale start-ups and large-scale confectionery factories with customized OEM & ODM services and turnkey project solutions.

OEM & ODM Customization

Custom machine layout, candy molds, production line configuration

R&D Support

New candy formula & process technical support

After-Sales Service

Overseas installation guidance, operation training, remote technical support, long-term spare parts supply

Turnkey Project

Raw material to finished candy packaging integrated solution

FAQs

Q: What's your main product range?

A: We supply single machines and full automatic production lines covering:
1.Chocolate machines: enrober, chocolate molding line, tempering machine, chocolate molds
2.Candy machines: jelly candy depositing line, toffee vacuum cooker, hard candy depositor, continuous vacuum cooker, automatic weighing & dissolving system
3.Auxiliary equipment: candy/chocolate custom molds, biscuit & wafer machines
Q: Can you customize machines or full production lines for my factory?

A: Absolutely. We provide full tailor-made solutions: adjust production capacity, machine size, layout, voltage, control system and matching packaging machines according to your factory space, target output and candy recipes. Our engineers design integrated turnkey lines from raw material feeding to finished product packaging.
Q: What after-sales support can you get after purchase?

A: Installation and Commissioning, Operation Training, Maintenance Service.
Q: What's your machine warranty period?

One-year full machine warranty and two-year warranty for core components; free repair and part replacement within the warranty term.
