In candy manufacturing, energy is not only consumed when steam valves open or compressors kick in—it leaks away in every unoptimized minute between batches. For plants running the SWM-AFD dissolving system, SWM-MC / SWM-JC600 vacuum cookers, SWM-HCD / SWM-JCD / SWM-LD50 depositors, and associated cooling tunnels, small operational adjustments add up to meaningful utility savings without sacrificing throughput or hygiene. You do not need a capital project to see results—just a sharper eye on how the line is actually run, day to day.
Below are practical, daily-production levers you can pull to reduce steam, power, compressed-air, and glycol demand. Each recommendation is mapped directly to the equipment design of Sweets Machinery production lines, so you can put them into practice immediately on your own shop floor.
Vacuum thin-film and micro-film cooking already shorten heat exposure versus open kettles, but operators sometimes "over-cook" by leaving standby heat on or holding at target temperature longer than the recipe requires. This habit is one of the largest hidden energy drains in a candy factory.
Optimization:
Use the HMI to lock in the exact thermal profile for each SKU—hard candy syrup around 140°C, gummy slurry near 105°C—and engage the vacuum phase only when needed. After discharge, drop heating demand instead of idling. Because the SWM-JC600 and SWM-MC use scraped-surface heat exchange with tight film contact, you avoid the insulation boundary layer that forces traditional kettles to draw extra steam. The PLC can even be programmed to step down steam pressure automatically once the cook is complete, so the boiler stops working the moment the product leaves the cylinder.
Observable saving: shorter cook cycles, lower steam pressure (typically 0.4–0.6 MPa utility range), and less color degradation that would otherwise trigger rework. Over a month of continuous production, this single adjustment often reduces steam consumption by 8–12% without changing a single gram of output.
Mixer parameters that are too aggressive waste kWh and generate unnecessary heat through shear; too slow, and you get stratification that extends heating time. Many small factories set the agitator to one fixed speed and leave it there all day—a costly compromise.
Optimization:

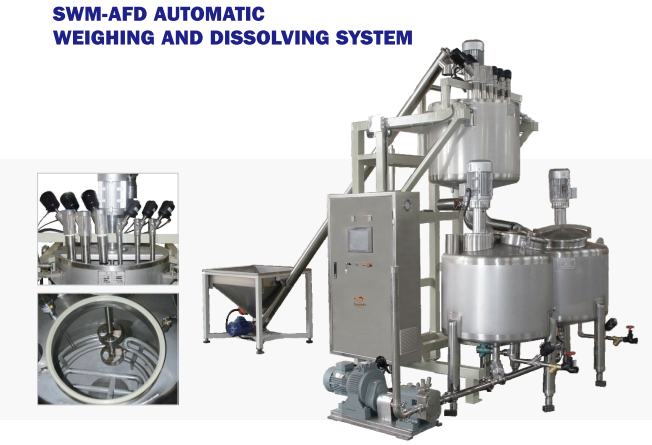

Run the SWM-AFD dissolving tank and cooker agitators on VFD profiles—low-RPM, high-torque folding during sugar and glucose dissolution; gentle sweep once gelatin or pectin is hydrated to protect bloom strength. Avoid constant high-speed operation. The VFD also allows soft-start, which reduces mechanical stress on belts and gearboxes while drawing less peak current from the electrical panel.
Result: faster heat transfer, no scorching, no over-shearing, and measurably lower motor draw. In a typical 8-hour shift, varying the agitator speed to match the recipe phase rather than running flat-out can save 15–25 kWh per tank—multiplied across multiple batches, that pays for itself quickly.
Cleaning is non-negotiable, but heating fresh water from cold for every loop wastes steam and time. Many plants run a full CIP after every batch regardless of what was produced, burning through both water and energy.
Optimization:
Group CIP runs where possible. Recover warm condensate from the cooker jacket or use a tempering tank to pre-heat CIP water to ~60°C before the pump engages. Use the built-in spray-ball logic rather than manual hose-down. For the SWM-HCD / SWM-JCD depositor loops and the SWM-LD50 lab unit, the HMI cycle already minimizes water volume—trust the programmed 5–8 minute loop instead of extending it. If you run similar flavors back-to-back, a rinse-only cycle between batches is often sufficient, reserving the full alkali circulation for the end of the day.
Bonus: less water means less effluent heating load downstream, and shorter CIP cycles mean your team finishes cleaning earlier. Over a year, optimized CIP scheduling typically cuts water heating energy by 20–30% compared to ad-hoc cleaning.
Leaky or continuously purged air lines drain compressors fast. The SWM-HCD, SWM-JCD-S40, and SWM-LD50 use pneumatic actuation for quick nozzle and hopper release, but idle bleed is a hidden cost that accumulates silently.
Optimization:
Set the line to 0.4–0.6 MPa and add local shut-off valves at shift end. Check piston seals and unions daily; listen for hiss. Use air knives only when product geometry demands it, and keep slots clean so pressure requirements stay low. A single 3 mm leak at 0.6 MPa wastes approximately 25–30 liters of compressed air per minute—translating to roughly 0.5 kW of compressor power running continuously to make up the loss. Walking the line for five minutes each morning with a simple ultrasonic leak detector pays back in days.
Impact: compressor runtime drops, and so does the moisture load on downstream air treatment. Your dryer works less, your filters last longer, and your electricity bill reflects it.
Over-chilling is the silent energy thief. Gummy and hard-candy demoulding zones often run colder than necessary, especially in winter or high-RH summer conditions when the ambient already helps with cooling.
Optimization:
Target 45–55% RH and set tunnel temperature to the process minimum, not the mechanical maximum. Keep belts dry and condensate drains clear so the refrigeration load stays predictable. When the line stops for mold change or breaks, drop the glycol pump to standby instead of full flow. The cooling tunnel on SWM-HCD and SWM-JCD lines is zoned—use that zoning. Shut off Zone 1 if product is not present, and let Zone 3 run at ambient when possible.
Result: stable set times, no sticky candy, lower refrigerant work. Refrigeration typically accounts for 25–35% of a candy plant's total electricity use; trimming just 3–5°C off unnecessary over-chilling can reduce that share by 10–15% without any capital investment.
Frequent cold starts of dissolved sugar, vacuum pumps, and glycol circuits punish the meter. Every cold start means reheating hundreds of kilograms of stainless steel, jackets, and product from ambient—a massive energy spike.
Optimization:
Schedule flavor or color change-overs back-to-back. If a line must pause under 30 minutes, keep the SWM-AFD solution gently agitated and insulated rather than dumping it. Pre-stage the next batch recipe on the HMI while the current one discharges. For longer breaks, drop the dissolving tank to a holding temperature of 60–70°C instead of full cook temperature—this maintains fluidity while cutting heat input by more than half.
Yield: fewer reheating spikes and less discarded product. Over a week of production, intelligent batch windowing can eliminate two or three full cold-start cycles, saving the equivalent of an entire day's steam consumption in some plants.
A worn scraper blade, a sticky vacuum-door seal, or scale on a heat-exchange surface all force the system to work harder. These are not just maintenance issues—they are energy issues in disguise.
Optimization:
Include heat-transfer-surface inspection, door-gasket integrity, and scraper-blade wear in the daily/preventive checklist. The 316L stainless, orbital-welded lines on Sweets Machinery equipment are designed to stay clean and conductive—keep them that way. A scraper blade with 1 mm of built-up sugar reduces heat transfer efficiency by an estimated 5–8%, forcing the steam system to compensate. Replacing that blade on schedule costs minutes; ignoring it costs kWh and steam all month long.
Energy savings should not require a capital project. By using VFD-driven agitation, recipe-locked cook profiles, HMI-guided CIP, and disciplined utility isolation on the SWM-AFD, SWM-MC, SWM-JC600, SWM-HCD, SWM-JCD, and SWM-LD50, operators typically see utility reductions in the first month—while keeping candy texture and food safety intact. The machines are already engineered for efficiency; the opportunity lies in operating them with intention.
