In candy manufacturing, few problems frustrate operators more than inconsistent discharge speed. One moment the depositor is flowing smoothly; the next, output slows to a trickle, then surges back. Candies come out too heavy, then too light. Some nozzles over-deposit while others barely drip. On high-speed lines like the SWM-HCD hard candy depositor or the SWM-JCD gummy depositor from Sweets Machinery ,even a 5% fluctuation in discharge rate translates into rejected product, wasted syrup, and downstream packaging complaints.

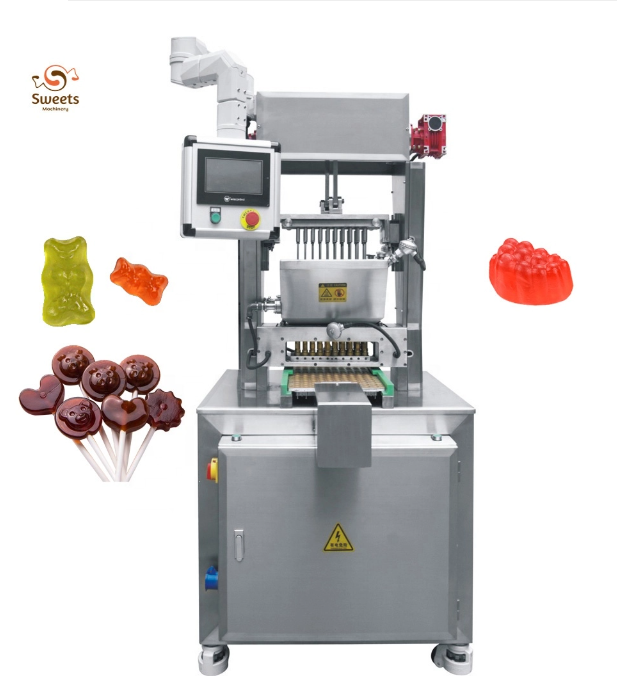

The root cause is rarely a single "broken part." Far more often, inconsistent discharge is the result of overlapping issues across material properties, feed pressure, metering accuracy, and control timing. For plants running SWM-AFD, SWM-MC, SWM-JC600, SWM-HCD, SWM-JCD, and SWM-LD50 equipment, the following prioritized checklist will help you pinpoint the problem in under 20 minutes—without unnecessary disassembly.
The majority of "equipment instability" is actually material instability. Before touching a single bolt, verify the following:
Syrup or gel temperature drift: A drop of just 2–3°C in hard candy mass increases viscosity and slows discharge. Gummy slurries (gelatin, pectin, carrageenan) are even more sensitive—typical target viscosity ranges from 500 to 2,000 cP, and even minor temperature shifts change flow behavior dramatically.
Viscosity outside the process window: Too thin and nozzles drip; too thick and pump pulsation increases, creating surge-discharge cycles.
Entrained air / unstable vacuum: If deaeration after dissolving or cooking is incomplete, air bubbles trapped in the hopper cause intermittent "dry suction" followed by a pressure surge.
Solids or moisture fluctuation: Inaccurate water dosing, inconsistent return-material ratios, or delayed acid addition can change flow properties from batch to batch—even with the same recipe.
Field action: Measure hopper temperature, weigh 10 consecutive discharges, and inspect the surface for floating foam. Stabilize temperature, refill the hopper to mid-high level, and bleed air from lines before assuming a mechanical fault.
No metering pump—no matter how precise—can compensate for unstable feed pressure.
Check these in order:
1. Hopper level too low: Falling liquid level reduces static head, weakening inlet flow. Piston or gear pumps will "run lighter" as the hopper empties.
2. Clogged inlet filter / screen: Pectin lumps, gelatin clusters, pigment particles, or flavor-settling residues accumulate at the inlet screen, causing cyclical pressure buildup and release.
3. Dead legs in inlet piping: Long runs, tight elbows, or blind pipes allow product to cool and thicken, then suddenly break loose—creating alternating blockage and free-flow.
4. Poor buffering / pressure equalization: Without a constant-level tank or overflow loop, pre-pump pressure fluctuates with the hopper liquid surface.
Diagnostic tip: Correlate discharge fluctuation with filling events. If instability consistently worsens as the hopper nears empty, the problem is feed-related—not nozzle-related.
This is the "brain" that decides how much product leaves the machine.
Gear pumps / rotor pumps (common on hard candy and hot syrup lines):
Worn gear faces increase internal clearance, raising backflow and reducing output at higher speeds.
Uneven pump body temperature changes viscosity and displacement drift.
Air ingestion at the pump inlet creates rhythmic "gulping" discharge.
Piston / servo metering cylinders (common on gummy, center-filled, and precision-deposit lines):
Aged piston seals allow leakage during both suction and discharge, causing gradual weight drift.
Altered servo parameters (stroke length, acceleration, dwell time) change actual delivered volume even when setpoints look correct on the HMI.
Sugar film buildup on cylinder walls changes friction and fill efficiency.
Quick isolation test: Divert the pump outlet into a container and run 30 empty shots. Weigh the minimum, maximum, and average. If the pump itself is inconsistent, the problem is in the pump. If the pump is stable but instability returns when nozzles are reconnected, the issue is downstream.

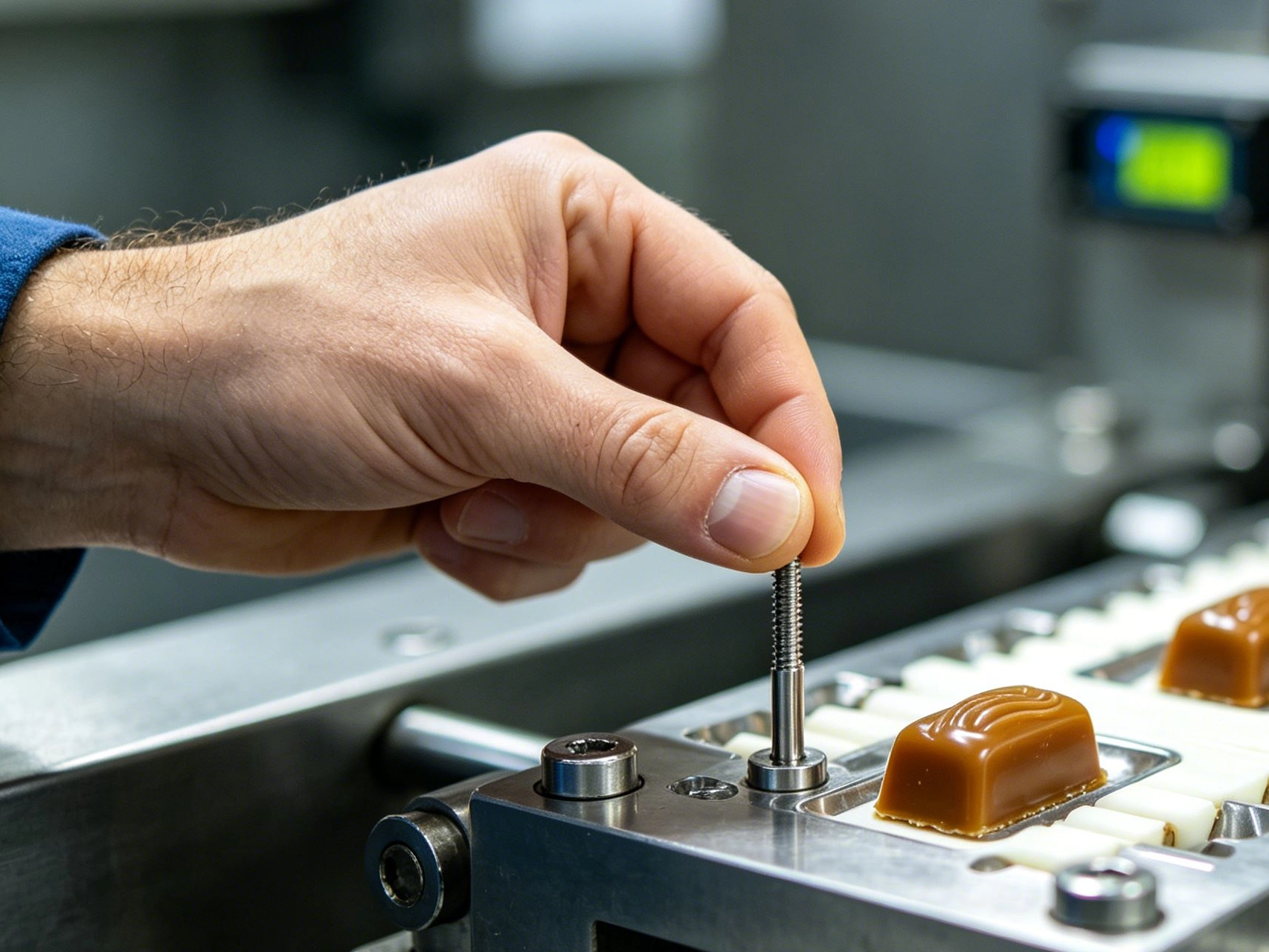

The nozzle is the final 5 millimeters—and the most common source of operator misdiagnosis.
Prioritize these checks:
Partially blocked micro-holes: Hard candy caramel spots, gummy gelatin skin, or pigment sediment narrow individual holes. Neighboring nozzles compensate by over-depositing, creating a false impression of "overall speed fluctuation."
Incorrect cut-off / suck-back parameters: Insufficient servo retraction causes dripping; excessive retraction causes intermittent discharge and head voids.
Nozzle wear or scoring: Enlarged bore diameters and rough internal surfaces alter both flow rate and deposit shape.
Uneven manifold pressure distribution: Trapped air or accumulated product inside the distribution manifold creates left-heavy, right-light patterns.
Nozzle-to-mold misalignment: Sometimes the flow is stable, but indexing drift makes deposits appear inconsistent.
Field action: Swap in a known-good nozzle. Exchange left and right nozzle blocks. Use the HMI to verify that valve actuation timing is identical across all channels.

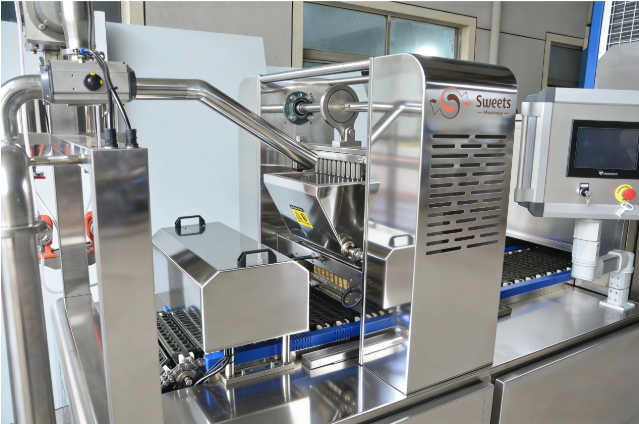

On SWM-HCD, SWM-JCD, and SWM-JCD-S40 lines, pneumatic quick-change, cut-off, and cylinder-actuated mechanisms depend on stable air supply:
Unstable compressor output causes cylinder advance/retract speed to vary.
Undersized or missing air receiver tanks create air starvation at each actuator stroke.
Sticking solenoid valve spools cause delayed opening or failure to close fully.
Tampered flow-control valves alter discharge rhythm unpredictably.
Typical candy-line air supply: 0.4–0.6 MPa (some actuators rated up to 0.6–0.8 MPa). Always measure dynamic pressure under load, not just static gauge readings.
Sometimes the machine is perfectly stable—but the rhythm is wrong.
Conveyor indexing and deposit trigger signals fall out of sync, causing deposits to land off-center, which looks like over- or under-deposit.
Encoder pulse loss makes the servo think it has moved when it hasn't—or vice versa.
Inverter (VFD) parameters altered without documentation cause pump speed drift.
Wrong recipe called up loads incorrect viscosity curves, pump speeds, and nozzle dwell times.
Triage approach: Run at a fixed moderate speed (e.g., 60% capacity). If stable at low speed but erratic at high speed, suspect pump wear, air supply, or servo acceleration settings. If erratic at all speeds, suspect material, nozzles, or PLC timing.
On SWM-JC600 / SWM-JCD vacuum cooking and depositing lines:
Falling vacuum level leaves residual vapor in the mass, causing volume expansion and contraction at the pump inlet.
Micro-leaks at vacuum door seals or agitator shaft seals degrade pressure stability and introduce air into the product.
Inaccurate cooking endpoint temperature creates varying degrees of cook for the same recipe, changing flow properties.
Weekly inspection of vacuum integrity, door seals, and agitator mechanical seals is the baseline defense against gummy discharge fluctuation.
Step | Check Area | Pass? → Next | Fail? → Action |
1 | Material temperature / viscosity / air | Yes | Stabilize temperature, deaerate, check recipe |
2 | Hopper level / inlet filter | Yes | Refill, clean screen, check piping |
3 | Pump discharge accuracy (dry run) | Yes | Calibrate or replace seals/valves |
4 | Nozzle swap / manifold cleaning | Yes | Clean or replace nozzles, rebalance manifold |
5 | Dynamic air pressure (0.4–0.6 MPa) | Yes | Service compressor, receiver, solenoids |
6 | HMI parameters / recipe / servo stroke | Yes | Restore documented settings, check encoder |
7 | Conveyor indexing / encoder alignment | — | Re-align, replace encoder, check VFD |
Rule of thumb: Approximately 70% of discharge instability originates in material and feed, 20% in pumps, nozzles, and air supply, and only 10% in major electrical or mechanical failures.
For SWM-HCD / SWM-JCD operators:
Use the HMI to run Nozzle Purge + single-channel test mode, isolating "whole-line problems" into "single-nozzle problems."
On gummy lines, perform alkali wash → acid wash → rinse between flavor changes to prevent residual gel from altering new batch flow properties.
On hard candy lines, remove and soft-brush the nozzle plate every shift—don't wait for caramel to bake solid.
Keep pumps, nozzles, O-rings, and manifold seals in a critical spare parts kit. Replace at the first sign of drift; don't wait for total failure.
When candy discharge rate fluctuates, don't blame the machine first. Verify that the material is stable, confirm feed pressure is adequate, validate pump metering accuracy, ensure nozzles are clear, and only then inspect air supply and control timing. Following this sequence, most issues can be diagnosed and corrected within 20 minutes—protecting your output, your product quality, and your bottom line.
