Most candy factories do not struggle because they lack machines. They struggle because dissolving, cooking, depositing, cooling, demolding, and packaging run like separate islands—each with its own operator judgment, paper log, and "good enough" setting. A modern control system turns those islands into one coordinated line.
On Sweets Machinery lines such as SWM-AFD, SWM-MC, SWM-JC600, SWM-HCD, SWM-JCD, and SWM-LD50, the control architecture is usually PLC + HMI + drives + sensors, with optional MES/ERP connectivity. The real value is not "more screens"—it is that production management work that used to be manual, reactive, and shift-dependent becomes structured, recorded, and repeatable.
 |  |
Traditional candy changeovers rely on senior operators remembering temperatures, pump speeds, cut-off timing, mold indexing, and acid/flavor addition points. That works until the senior operator is on leave.
A control system stores recipes as data:
Target cook temperature and vacuum level
Agitator RPM and feeding rate
Metering pump stroke / servo deposition volume
Nozzle cut-off and suck-back time
Conveyor speed and cooling tunnel setpoints
CIP sequence and chemical concentration window
Switching from hard candy to gummy, or from plain gelatin to pectin/striped/center-filled product, becomes a recipe selection instead of a re-engineering job. Recipes can be locked, versioned, and password-protected, so an unauthorized operator cannot quietly change depositing weight or cook temperature.
Management benefit: fewer batch-to-batch deviations, faster SKU changes, less dependence on individual experience.
Candy quality problems often start at boundaries: cooker outputs faster than the depositor can place, conveyor runs faster than candy sets, demolding happens before gel structure is stable.
The control system coordinates these stages through PLC logic and drive communication:
Dissolving tank level → cooker feed rate
Cooker discharge → depositor speed
Depositor cadence → mold conveyor indexing
Cooling zone temperature/profile → line speed
Demolder and sorter → packaging machine speed
Instead of three operators negotiating by shout and eyeball, the line runs to one master clock. Buffers and interlocks prevent overfill, product bunching, stringing, and cold/hot shock.
Management benefit: less in-process scrap, steadier piece weight, fewer stoppages caused by stage mismatch.
Hard candy syrup, gummy slurry, and filled masses are all viscosity- and temperature-sensitive. A few degrees change the flow; a few seconds change the texture.
With centralized control, the system continuously reads:
Hopper and jacket temperature
Vacuum/pressure
Flow and pump load
Conveyor speed
Cooling tunnel humidity/temperature
Nozzle/discharge behavior via cycle data
PID loops hold temperature and pressure; servo/VFD systems hold speed and dose. When something drifts, the HMI shows the deviation before the candy becomes off-spec. Operators adjust setpoints, not instincts.
Management benefit: narrower quality variation, lower sweet/flavor giveaway, fewer customer complaints about texture and weight.
Without a control system, a stoppage is often described as: "It jammed somewhere." With a structured HMI/SCADA layer, the fault has context:
Which module stopped first
Which sensor triggered the interlock
Whether it was temperature, pressure, no-flow, door open, encoder loss, or pneumatic pressure drop
How long the machine stayed in fault
Which downtime reason code was selected
Over weeks, this builds a downtime dictionary: "SWM-JCD nozzle 6 partial block," "cooling tunnel fan 2 overcurrent," "vacuum pump oil alarm." Management stops arguing about "was it people or machine" and starts fixing the top three reasons.
Management benefit: OEE becomes measurable; maintenance shifts from breakdown repair to targeted prevention.
Food safety audits ask boring-but-lethal questions:
Which batch used which gelatin lot? What cook temperature was recorded? Who changed the recipe? When was the CIP cycle run?
A control system logs:
Raw material / lot input at dosing stage
Timestamped process parameters
Recipe version used
Operator ID and permission level
CIP/cleaning validation data
Reject and rework events
If a flavor supplier issue appears three weeks later, the plant can trace affected batches instead of recalling everything. For gummy lines with gelatin, pectin, vitamins, or functional additives, this is not optional.
Management benefit: faster recall scope, cleaner audits, stronger trust with retailers and export buyers.
Modern candy businesses live on variety: sugar-free, vegan gummies, double-color, center-filled, vitamin SKUs, festival shapes. Manual lines hate this. Controlled lines handle it better.

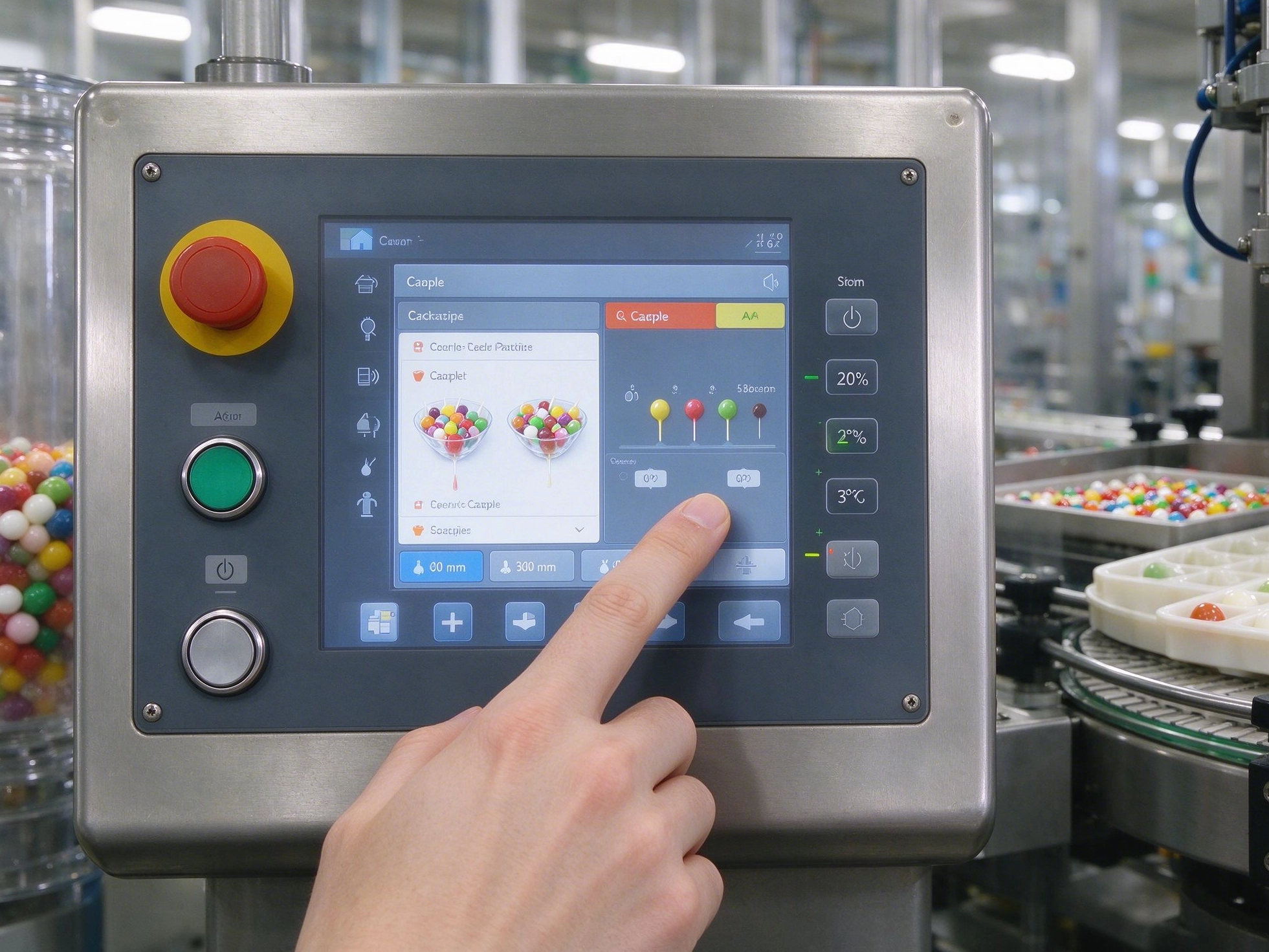

The HMI can guide operators step by step:
1. Select product → system shows tooling, nozzle set, mold type
2. Auto-adjust cook/deposit/cool parameters within validated range
3. Run nozzle purge / single-channel test
4. Log cleaning validation before new allergen/flavor
5. Start production with locked recipe
Changeover becomes a managed procedure, not a workshop improvisation.
Management benefit: more SKUs per month, shorter campaign lengths, better response to seasonal demand.
A candy control system can push data upward, not just downward. Connected to MES/ERP, it supports:
Order-based production start
Actual vs planned output
Material consumption per batch
Energy and compressed-air usage
Reject rate by hour/shift/product
Maintenance counter and wear-part life
Packaging line synchronization
Planners stop asking "how many kg did line 2 make yesterday?" because the dashboard already answered it at 06:00.
Management benefit: scheduling is based on real capacity, not hope; purchasing and production planning improve together.
Control systems track operating hours, cycle counts, motor load, pump pressure trend, VFD faults, and seal/alarm history. That data feeds a simple but powerful workflow:
Chain elongation trend → plan replacement
Gearbox temperature creep → inspect oil and bearings
Vacuum decay → check door seal and shaft seal
Nozzle pressure imbalance → clean manifold before reject rate rises
Maintenance becomes calendar + condition based, not panic based.
Management benefit: fewer midnight breakdowns, longer equipment life, more predictable weekly output.
Automation does not only "save labor"; it changes what labor does. On a well-controlled candy line:
Feeding, dosing, depositing, demolding, and sorting need less manual tweaking
Operators supervise screens, handle exceptions, and verify quality
New staff learn HMI workflows faster than oral "tribal knowledge"
Supervisors spend time on yield, hygiene, and order fulfillment
For contract manufacturers running many private-label SKUs, this is often the biggest hidden saving.
Management benefit: steadier quality across shifts, easier training, less disruption when staff change.
Candy lines waste money through steam, compressed air, and cooling overuse. A control system can:
Ramp heaters only when product is present
Stop pneumatic actuators from "fighting" each other
Idle conveyor sections during buffer pause
Record kWh, steam, water, and air per batch
Enforce CIP chemical concentration instead of "pour and hope"
Management benefit: lower unit energy cost, better carbon/utility reporting, cleaner washdown compliance.
On SWM-AFD: automatic weighing/dissolving logic reduces manual dosing errors.
On SWM-MC / SWM-JC600: cooker-vacuum-depositor coordination stabilizes texture and moisture.

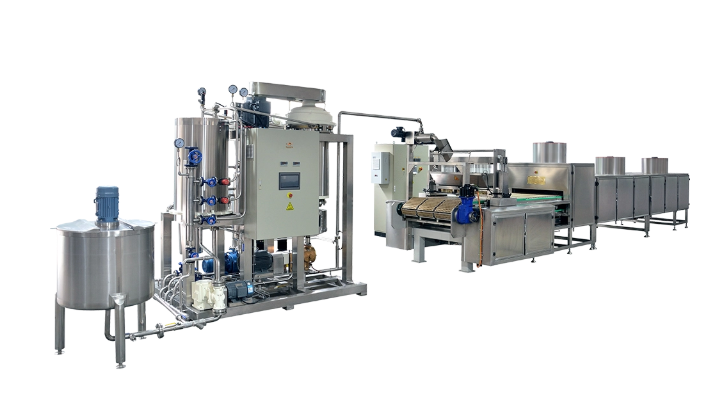

On SWM-HCD: hard candy depositing speed, cut-off, and mold indexing stay synchronized.

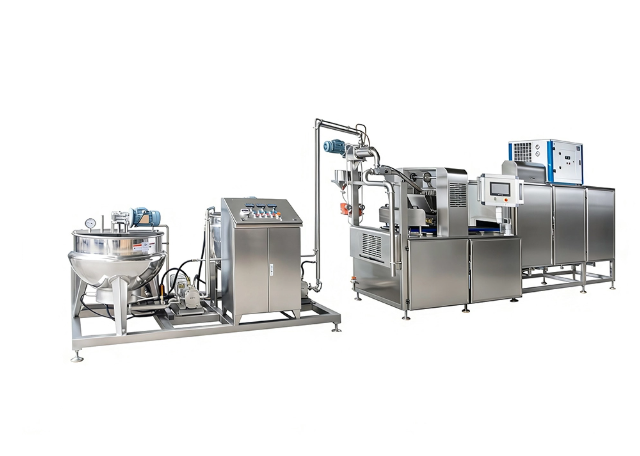

On SWM-JCD / SWM-JCD-S40: gummy recipes, nozzle purges, and CIP sequences become repeatable.

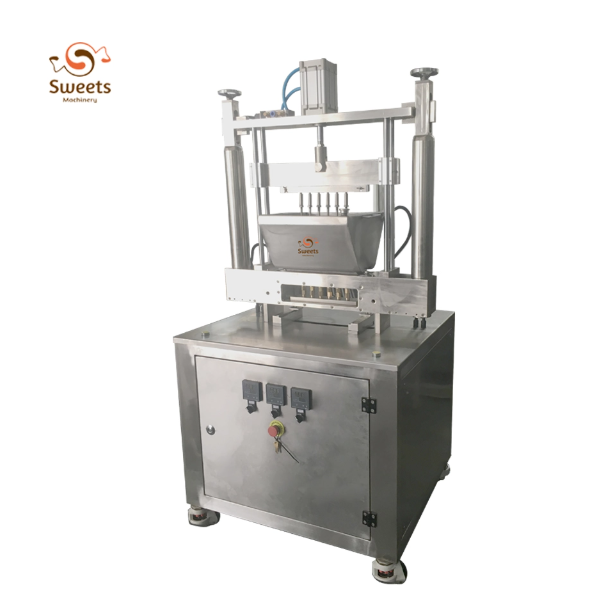

On SWM-LD50: R&D trials get clean data logging and prevent cross-flavor contamination.
A candy machine control system does not just "run motors." It simplifies production management by turning experience into data, data into recipes, recipes into automatic execution, and execution into traceable records.
The plant manager gains five things that paper and memory cannot give reliably:
1. Repeatability across shifts
2. Speed in changeovers
3. Visibility into downtime and rejects
4. Traceability for food safety
5. Predictability for planning and maintenance
If your candy line still runs on "the operator knows how to do it," the control system is what lets your business scale beyond that one person.
