In confectionery manufacturing, the dissolving tank and cooker—such as the SWM-AFD​ and SWM-MC—are where syrup quality is fundamentally established. The mixer is not merely a mechanical agitator; it is a precision tool that governs heat transfer, ingredient dispersion, and rheology. When parameters like speed (RPM), torque, blade geometry, or sequence are set incorrectly, the consequences are immediately visible in the syrup. For procurement managers and production engineers at new small candy factories, recognizing these observable defects is critical to avoiding batch loss.

Here are the key observable impacts of improper mixer parameters on syrup quality.

1. Incomplete Dissolution and Sedimentation (The "Gritty Bottom" Effect)

• The Parameter Mistake:​ Setting the agitator speed too low or using an undersized motor for high-solid loads. This is common in the SWM-AFD​ dissolving tank when processing high-Brix sugar or milk powder slurries.

• Observable Impact:​ The syrup appears cloudy or visibly heterogeneous. Upon draining the tank, a thick, undissolved sediment of sugar or colloidal particles is found caked on the bottom and edges. This "dead zone" occurs because low shear force fails to keep solids in suspension, leading to localized over-concentration and precipitation .

• Quality Consequence:​ Finished candies develop a sandy, gritty texture. In hard candies, this leads to premature crystallization; in gummies, it causes uneven setting and weak gel structure.

2. Localized Scorching and Color Degradation (The "Burnt Caramel" Effect)

• The Parameter Mistake:​ Excessive tip speed (too high RPM with a large-diameter impeller) or poor flow patterns that allow syrup to stagnate against the heated jacket wall.

• Observable Impact:​ The syrup develops an unexpected amber or brown hue and emits a faint burnt or caramelized odor. When tested on a white surface, the color is visibly darker than the standard. This happens because high-shear mixing throws viscous syrup against the hot wall, where it forms a thin film that exceeds the sugar decomposition temperature (sucrose begins to break down rapidly above 115°C) .

• Quality Consequence:​ Off-flavors permeate the batch. In softgels and gummies, this chemical degradation can weaken the gelatin matrix, reducing shelf life and causing stickiness.

3. Uncontrolled Aeration and Foam Stability (The "Bubble Trap" Effect)

• The Parameter Mistake:​ Using high-speed, high-shear mixers (e.g., turbine or homogenizer blades) during the vacuum or atmospheric blending phase, especially when incorporating acids, flavors, or foaming agents.

• Observable Impact:​ The syrup surface is covered in a stable, persistent foam that does not dissipate easily even after the mixer stops. When poured, the syrup "puffs up" and traps microscopic air bubbles. In gummy production using the SWM-JCD​ line, over-mixing introduces excessive air that cannot be removed by the vacuum cooker .

• Quality Consequence:​ Finished candies have a porous, spongy texture with surface pitting. In molded products, trapped air causes incomplete mold filling, resulting in deformed shapes and inconsistent weights.

4. Uneven Temperature and Concentration Stratification (The "Density Gradient" Effect)

• The Parameter Mistake:​ Incorrect impeller type (e.g., using a marine propeller in a high-viscosity cooker) or insufficient torque to overcome viscous drag.

• Observable Impact:​ A density gradient is visible in the vessel. The top layer appears thinner and lighter, while the bottom is thick and highly concentrated. Temperature probes placed at different depths show significant variance (e.g., a 5–10°C difference). The mixer fails to create a fully developed turbulent flow, leaving pockets of unmixed or undercooked syrup .

• Quality Consequence:​ Inconsistent final product quality within a single batch. Some candies may be too hard (over-cooked syrup from the bottom), while others are too soft and sticky (under-cooked syrup from the top).

5. Premature Gelatin or Pectin Degradation (The "Broken Matrix" Effect)

• The Parameter Mistake:​ Applying high shear force or excessive mechanical stress after gelling agents (gelatin, pectin) have been added and hydrated, particularly in the SWM-JC600​ or SWM-JCD​ blend tanks.

• Observable Impact:​ The syrup loses its expected viscosity profile rapidly. It appears "watery" even at the correct temperature. When poured into molds, it fails to set firmly or takes an excessively long time to cure.

• Quality Consequence:​ Over-shearing breaks the long-chain polymer molecules of gelatin or pectin, destroying their bloom strength . The resulting gummies are weak, melt easily at room temperature, and lack the required chewiness.

6. Inefficient Heat Transfer and Prolonged Cook Times (The "Energy Waste" Effect)

• The Parameter Mistake:​ Incorrect mixer clearance from the tank wall or baffles, or running the mixer at the wrong phase of the heating cycle.

• Observable Impact:​ The syrup takes significantly longer to reach the target temperature (e.g., 140°C for hard candy or 105°C for gummy slurry) than the FAT (Factory Acceptance Test) protocol specifies. Steam pressure drops or glycol temperatures fluctuate wildly. Visually, the syrup near the heating surface appears to "stick," forming an insulating boundary layer .

• Quality Consequence:​ Extended cook times increase the risk of Maillard reactions and color darkening. For small factories, this directly translates to higher energy bills and reduced daily throughput.

Engineering the Solution: Sweets Machinery Design Philosophy

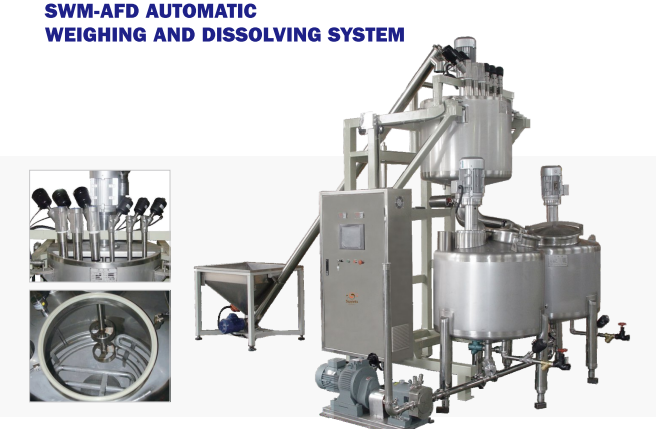

At Sweets Machinery , we treat the mixer as a system, not an accessory. When configuring the SWM-AFD​ dissolving tank or the SWM-MC / SWM-JC600 cookers for your facility, we match the impeller geometry (anchor, pitched-blade, or scraper) to the exact viscosity curve of your recipe.

Our servo-assisted agitators allow for variable frequency drive (VFD) control, enabling gentle, low-shear folding for gelatin incorporation and high-torque scraping for high-solid sugar dissolution. This eliminates the observable defects mentioned above—no sedimentation, no scorching, no uncontrolled aeration.
