For a new small candy factory, purchasing production equipment is the single largest capital expenditure you will make. With limited floor space and a tight budget, the machine you choose must do more than just "make candy"—it must run reliably, clean easily, and scale with your business. Many first-time buyers fixate on the price tag and rated capacity, only to discover hidden costs in energy bills, spare parts, and downtime later.
To avoid these pitfalls, small factory owners should evaluate machinery through the lens of five core equipment indicators. These are not sales talking points; they are the engineering specifications that determine whether your production line becomes a profit center or a maintenance headache. At Sweets Machinery , we design every machine around these exact benchmarks—from our compact SWM-JCD-S40 pilot line to our full-scale SWM-HCD hard candy systems.
The most critical indicator on any candy machine is the metallurgy of every part that touches syrup. This specification directly impacts food safety compliance, product flavor, and equipment lifespan.
304 vs. 316L stainless steel: For hard candy lines, 304 stainless is generally acceptable for most contact surfaces because the syrup is non-acidic and cooked above 150°C. However, for any gummy candy production line, 316L is mandatory in the cooker, blend tank, and depositor head. The 2–3% molybdenum in 316L resists citric, malic, and lactic acid corrosion at 80–110°C. Using 304 in these zones leads to pitting within 12–18 months. At Sweets Machinery, even our smallest SWM-LD50 Laboratory Depositor uses 316L in all product-contact parts—because small-batch R&D still demands food-grade integrity.
Surface roughness (Ra): Food-grade compliance depends on finish, not just alloy. Specifications should state Ra ≤ 0.8 µm for general contact and Ra ≤ 0.4 µm for hard candy molds and depositor nozzles. A rough surface traps burnt syrup and becomes a bacterial harbor. Our SWM-AFD Automatic Weighing and Dissolving System features mirror-polished 316L tanks (Ra ≤ 0.4 µm) to ensure no sugar residues hide in microscopic pits.
Certification traceability: The machine is only as food-safe as its Mill Test Certificate (MTC). If a supplier cannot provide material traceability for every contact plate, the equipment fails before it ever runs a single batch. Sweets Machinery provides full MTC documentation with every line, from the SWM-MC Continuous Vacuum Microfilm Cooker to the smallest valve.
A candy line is only as precise as its motion control system. Small factories often inherit second-hand lines with outdated pneumatic systems or relay-based controls that create drift, inconsistency, and unexpected downtime.

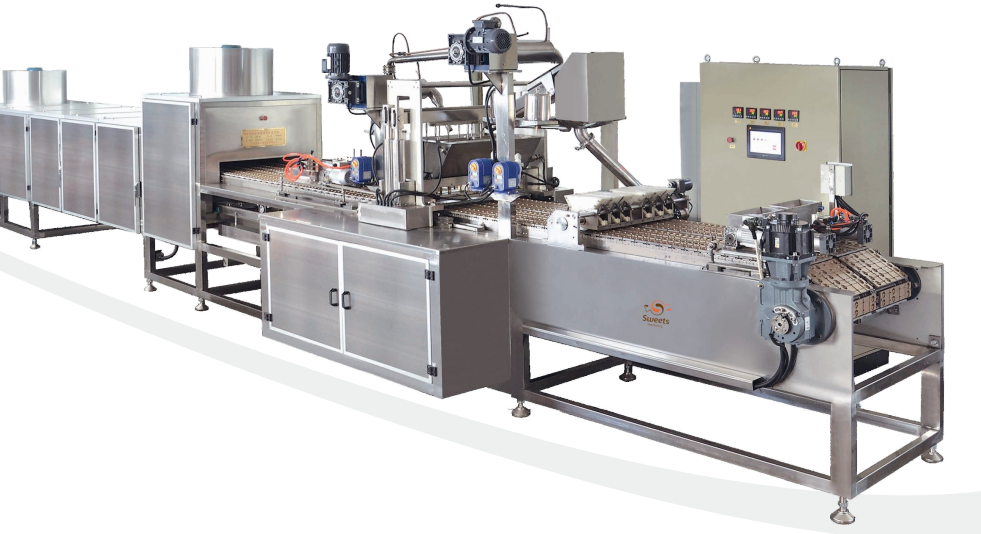

Servo-driven deposition vs. pneumatic: A pneumatic depositor relies on compressed air, which is compressible and fluctuates with line load. Shot-weight variance can exceed ±3%. A servo-driven depositor uses closed-loop feedback to maintain ±1% or better. For small factories where every gram of raw material counts, this specification directly protects your margins. The SWM-HCD Hard Candy Depositing Line servo version and the SWM-FLD Servo Driven Flat Lollipop Depositing Line both use motion-controller-driven servo motors for repeatable, drift-free operation.
PLC platform and HMI: Insist on a named PLC brand (Siemens, Omron, Mitsubishi) with a color touchscreen HMI. Proprietary or unknown controllers are a long-term risk—if the manufacturer discontinues the board, you cannot buy a replacement. Recipe storage, alarm logging, and trend export are not luxuries; they are diagnostic necessities. Every Sweets Machinery line—from the SWM-JCD Jelly Candy Depositing Line to the SWM-TD Toffee Line—ships with a branded PLC and multilingual HMI as standard.

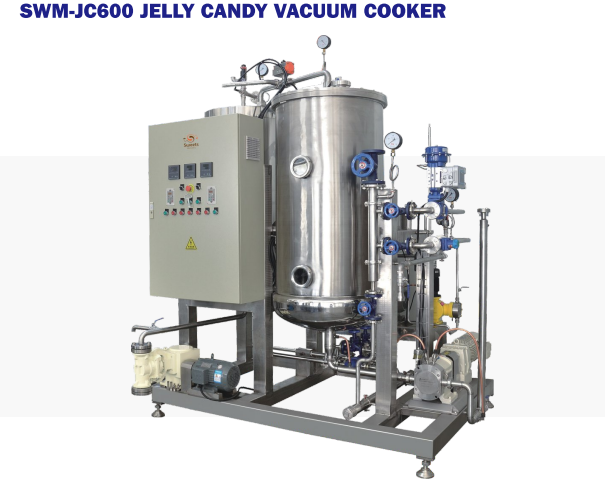

Inverter-driven motors (VFD): Every conveyor, stirrer, and pump should be VFD-controlled. Fixed-speed motors waste energy and cannot be fine-tuned for different candy textures. VFDs also enable soft-start, reducing mechanical stress on belts and gearboxes during daily startup. Our SWM-JC600 Jelly Candy Vacuum Cooker uses VFD-driven agitation to match precise shear rates for pectin, gelatin, and carrageenan slurries.
The cooker and cooling tunnel are the two most thermally demanding components on your line. Their engineering specifications determine whether your candy sets correctly and how much you spend on utilities every month.
Cooling tunnel zoning: A single-zone tunnel is a false economy. Specifications must show at least three independent zones with separate temperature and airflow control. Hard candy needs aggressive middle-zone cooling (8–12°C) and a tempered exit zone (25–28°C) to prevent thermal shock cracking. Gummy lines require integrated dehumidification (45–55% RH) in addition to staged cooling. The cooling tunnels on our SWM-HCD and SWM-JCD lines are built with three independently controlled zones as standard—no upgrade required.
Heat transfer surface area: A rotary vacuum cooker's real capacity is defined by the evaporative surface area of its heating cylinder, not just motor power. Undersized cookers force longer residence time, risking caramelization. Check the specified heating area (m²) per kg/h of rated output before signing the PO. The SWM-MC and SWM-JC600 both publish heating area per kg/h in their technical datasheets—transparent engineering, not marketing guesswork.
Insulation specification: Cooker jackets and glycol pipes should be insulated with closed-cell foam (minimum 25 mm thickness, thermal conductivity ≤ 0.035 W/m·K). Poor insulation bleeds heat into the factory, raises ambient temperature, and increases energy cost by 15–20% annually. All Sweets Machinery cookers and glycol lines are factory-insulated to this exact specification.
Two machines may both "run," but one will need a major rebuild at 6,000 hours while the other crosses 30,000 hours. The difference is in the mechanical tolerances specified on the datasheet.
Pump rotor clearance: In a positive-displacement rotor pump, the clearance between rotor and housing should be specified in microns. Tight clearance prevents slip at high viscosity, ensuring consistent deposit weight. Ask the supplier for the clearance spec and the reassembly procedure after seal replacement. Sweets Machinery publishes rotor clearance values for every pump in our SWM-AFD and SWM-JCD systems—and our service manuals include step-by-step reassembly torque sequences.
Mold alignment accuracy: On a depositing line, the nozzle plate and mold cavity must align within ±0.3 mm. Misalignment causes syrup splash, mold rim buildup, and eventual sticking. Check whether the machine uses fixed tooling plates (higher precision, lower wear tolerance) or adjustable cam followers (more forgiving but requires periodic recalibration). SWM-HCD servo lines use fixed tooling plates machined to ±0.1 mm—set once, run for years.
Bearing seals and IP rating: Every bearing near syrup should be double-lip sealed and rated IP65 or higher. Open bearings in a candy environment fail fast. This small specification prevents big breakdowns and keeps contaminants out of your product zone. All product-zone bearings on Sweets Machinery equipment carry IP65 double-lip seals as standard—from the SWM-LD50 lab unit to the 600 kg/h SWM-JCD.
Small factories cannot afford dedicated cleaning crews. The equipment must be designed so that one person with a hose can clean it thoroughly in under an hour—every single day.
Drainability: Every tank, pipe, and trough should have a slope ≥ 3° toward a drain. Dead legs—horizontal pipe sections with no outlet—trap syrup and become biofilm nurseries within 48 hours. The SWM-AFD dissolving tank, the SWM-MC cooker jacket, and the SWM-JCD blend-and-deposit loop are all flushed from the HMI with CIP spray balls. Even our compact SWM-JCD-S40 (40 kg/h, 9×1.3×2.55 m) follows the same CIP-ready philosophy—no manual scrubbing required.
CIP compatibility: The specification sheet should confirm orbital-welded tubing (no threaded joints in product zones), full-port ball valves, and CIP spray balls in blend tanks and cookers. Threaded fittings are acceptable only on non-product-contact utility connections. Every Sweets Machinery line is built with orbital-welded 316L product pipes and CIP spray balls as standard—verifiable in our factory acceptance test (FAT) protocol.
Tool-free disassembly: Hoppers, pump heads, and depositor nozzles should be removable without tools or with a single hand knob. If the manual calls for a wrench to strip the machine for cleaning, the design fails the convenience test. On the SWM-HCD and SWM-JCD, hoppers tilt open, pump heads swing away, and nozzles release with a quarter-turn—all without a single wrench.
A new small candy factory should buy equipment the way an engineer buys a precision instrument—by opening the spec sheet and reading every line. The five indicators above—material grade, drive architecture, thermal design, mechanical tolerances, and cleanability—are where the real value lives. Everything else is cosmetic.
At Sweets Machinery , every machine we build is specified on paper before a single weld is made. We publish Ra values, pump clearances, cooling zone counts, and PLC platforms because small factories cannot afford equipment that looks good on the showroom floor but fails at hour 3,000. Whether you start with our SWM-LD50 lab depositor, scale through the SWM-JCD-S40 pilot line, or go straight to a full SWM-HCD or SWM-JCD production line, the engineering logic is identical—and the specification sheet is honest.
Planning your first candy line? Send us your target capacity and product type—we will send back a specification sheet that tells you exactly what is inside the machine, not just what it can produce.
