Traditional candy workshops run on experience: the boiler watches the thermometer, the pourer judges syrup by eye, the mold boy times the cool-down by feel. It works—until it doesn’t. Batch variation, heat fatigue, and recipe drift quietly erode margin. The fully automatic candy production line sold by Ningbo Sweets Machinery turns that artisan guesswork into a parameterized, repeatable routine. The convenience is not a slogan; it is engineered into every module from the SWM-AFD Automatic Weighing and Dissolving System​ to the servo depositor and the cooling tunnel. Below is how the upgrade actually feels on the factory floor.

1. Recipe-Driven Start: From Hand-Mixing to SWM-AFD + PLC Memory

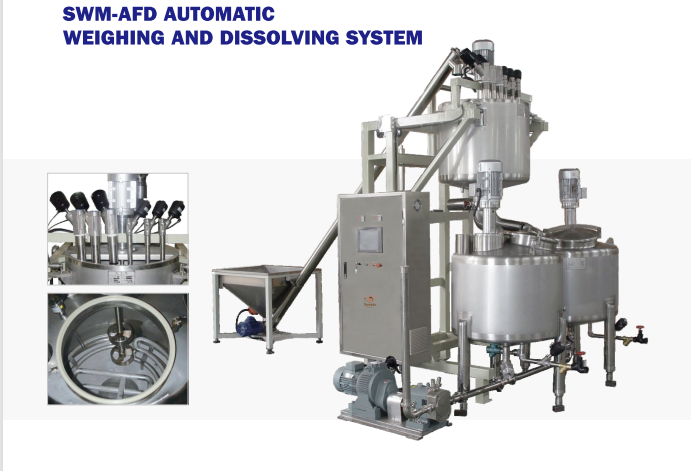

In a traditional kitchen, scaling a recipe means shoveling sugar, scooping glucose, and guessing water volume. The SWM-AFD Automatic Weighing and Dissolving System​ replaces the scale and the ladle with a PLC-controlled sequence: six liquid valves plus one water valve, screw sugar feeder, 280 L weighing tank, and 320 L dissolving tank(s). Operators pick a stored recipe on the touch screen—say “lemon hard candy 18°Brix” or “mango pectin gummy”—and the system doses, weighs, and dissolves to a homogeneous slurry.

Convenience payoff: a junior worker starts a correct batch in 90 seconds. No handwriting on the whiteboard, no “who used the glucose bucket” mystery. Recipes live in the PLC, so Monday’s shift and night shift make the same candy.

2. Cooking Becomes a Set-Point, Not a Skill: SWM-MC & SWM-JC600

Hard candy traditionally needs a cook who knows the “hard crack” stage by sound. The SWM-MC Continuous Vacuum Microfilm Cooker​ (300 or 500 kg/h) removes that dependency. Vacuum, steam pressure (<0.7 MPa), and microfilm evaporation are PID-locked. The SWM-JC600 Jelly Candy Vacuum Cooker​ does the same for pectin, gelatin, and carrageenan slurries at 600 kg/h, holding final moisture by vacuum level rather than by spoon-testing.

Convenience payoff: the machine tells you when it is ready. The HMI shows cook temperature, vacuum, and throughput. If a valve sticks, the alarm says “Low Steam Pressure”, not “candy looks dull”.

3. One-Touch Changeover on the Depositor

The biggest time-sink in traditional lines is product switch: clean the trough, scrape the batch roller, re-cut dies, re-zero the rope sizer. On Sweets Machinery automatic lines, the depositor is the conversion hub.

SWM-HCD Hard Candy Depositing Line​ (300–600 kg/h, 40–55 strokes/min) offers mechanical or servo-driven with motion controller/PLC​ versions. Changing from clear hard candy to two-color striped or center-filled takes a recipe call-up plus a mold swap—no cam redesign.

SWM-JCD Jelly Candy Depositing Line​ (150–600 kg/h) runs solid, striped, layered, and center-filled jelly in 2D/3D on metal moulds. The servo depositor stores shot volume, nozzle timing, and mold index in the recipe file.

Convenience payoff: hard candy → gummy is still a full clean, but same-family change (e.g. apple hard candy → cola hard candy) is a HMI tap. No wrench, no ruler.

4. Servo Motion Removes the “Feel” Factor

Traditional rope-forming lines need a veteran to set batch roller gaps and rope sizer pressure. Sweets Machinery’s servo depositors replace that with closed-loop positioning.

On the SWM-HCD servo version, candy weight is tuned by entering grams on the screen; the servo stroke compensates for viscosity. On the SWM-FLD Servo Driven Flat Lollipop Depositing Line, stick insertion, flat lollipop deposit, and cooling tunnel sync are motion-controlled—no pneumatic delay, no “slightly open the air regulator” ritual.

Convenience payoff: new hires run rated output in day one training. Weight drift shows on the HMI trend, not in customer complaints.

5. Integrated Utilities and Self-Diagnostics

A traditional shop keeps a chalkboard of steam pressure, compressor load, and water tank level. Sweets automatic lines surface all of it in one place.

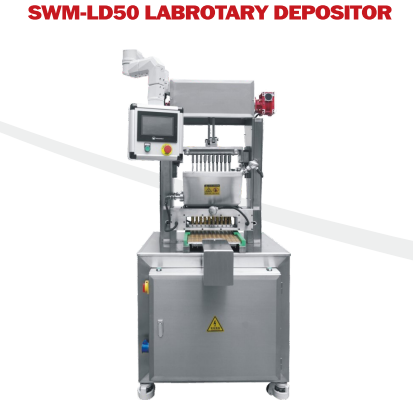

Every line—SWM-HCD, SWM-JCD, SWM-TD toffee line, SWM-LD lollipop line—publishes its utilities on the HMI: steam consumption (e.g. 450 kg/h), compressed air 0.4–0.6 MPa, water 2200 L/h. Fault screens are plain-text: “Cooling Tunnel Zone 2 Over-Temp”, “Dissolving Tank Agitator Overload”. The SWM-LD50 Laboratory Depositor​ (30 kg/h, 3 kW) brings the same logic to R&D—one touch screen, four wheels, plug-and-run.

Convenience payoff: maintenance is a call to a labeled alarm, not a tear-down autopsy.

6. CIP-Ready Hygiene, Not Scrub-by-Hand

Open-fire cookers and wooden molds need Saturday scrubbing. Sweets lines are built on 304/316L stainless with orbital-welded product pipes, CIP spray balls in cookers and blend tanks, and tool-free hopper removal on depositors.

The SWM-AFD​ dissolving tank, the SWM-MC​ cooker jacket, and the SWM-JCD​ blend-and-deposit loop are all flushed from the HMI. Even the small SWM-JCD-S40​ (40 kg/h gummy line, 9×1.3×2.55 m) keeps the same clean-in-place philosophy.

Convenience payoff: end-of-day wash is a 40-minute auto cycle, not a 3-hour manual job. Audit prep is a printed CIP log from the PLC.

7. Small-Scale Entry Keeps the Same Logic

Convenience is not only for 600 kg/h plants. The SWM-LD50​ lab depositor and SWM-JCD-S40​ pilot line use the same PLC/HMI language as the full SWM-HCD or SWM-JCD. A startup can train on the bench unit, then scale to the production line without re-learning the control philosophy.

Convenience payoff: muscle memory transfers. The screen you learned on the 30 kg/h machine is the screen on the 600 kg/h machine.

8. Traditional vs. Automatic: The Daily Difference

Conclusion: Convenience Is Compounded Time

A fully automatic candy line from Ningbo Sweets Machinery does not just “save labor”—it compresses the operator’s decisions into verified presets. The SWM-AFD​ weighs, the S,WM-MC / SWM-JC600​ cook, the SWM-HCD / SWM-JCD​ deposit, the cooling tunnel sets, and the HMI watches. Traditional methods ask a person to be the controller; the automatic line asks a person to be the supervisor.

For a plant owner, that shift is the real convenience: fewer variables owned by memory, more variables owned by the machine.

Want to see the HMI before you buy?​ Contact Ningbo Sweets Machinery for a video walkthrough of the SWM-HCD or SWM-JCD control screen and we will show you exactly how a recipe change takes 90 seconds. Welcome to our website to know more information: www.sweetsmachines.com
