In the symphony of a modern confectionery factory, the candy depositing machine plays the role of the virtuoso soloist. It is the critical junction where science meets art—transforming boiling, amorphous sugar syrup into perfectly formed, crystal-clear hard candies or precisely textured gummy bears. While it may appear to be a simple process of "pouring liquid into a mold," the reality is a high-stakes ballet of fluid dynamics, thermodynamics, and micron-level mechanical precision.
For factory owners and production managers, understanding how a depositor achieves pinpoint accuracy isn't just academic; it's the key to reducing waste, ensuring batch consistency, and maximizing profitability. So, how does a candy depositing machine master the transition from chaotic fluid to uniform product? Let’s break down the engineering secrets behind the magic.
The fundamental job of a depositor is to exploit the massive temperature differential between the hot syrup and the cold mold to induce a rapid phase change.
When syrup—often maintained at 140°C to 160°C—hits the mold cavity, it experiences immediate thermal shock. The mold, cooled by circulating glycol or chilled water, acts as a heat sink. This rapid cooling forces the sugar molecules to lock into a rigid, glassy state (in hard candies) or triggers the hydrocolloid network to set (in gummies). The precision of this transition depends entirely on the depositor’s ability to control the volume, velocity, and temperature of the syrup entering the mold. Any fluctuation, and you risk "tails" (dripping syrup), air bubbles, or incomplete setting.

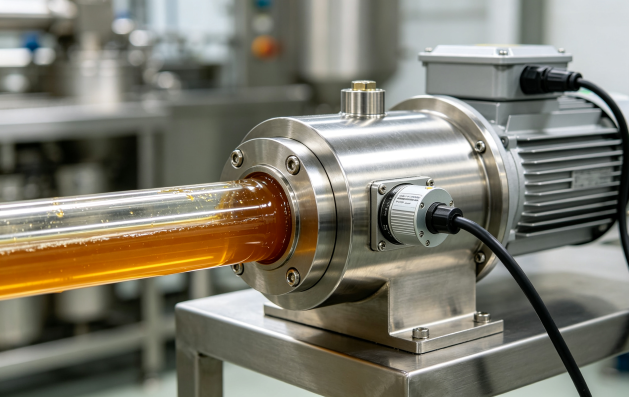

Accuracy begins long before the syrup touches the mold; it starts with the positive displacement pump. Unlike centrifugal pumps that struggle with high-viscosity fluids, candy depositors utilize rotor pumps or gear pumps.
These pumps operate on a fixed-volume principle: every rotation displaces an exact amount of syrup. In high-end machines, these pumps are driven by independent servo motors. This allows for micro-adjustments in real-time. If the syrup viscosity thickens due to a slight temperature drop, the servo drive increases torque to maintain flow rate. This closed-loop control ensures that every shot of syrup is identical in volume, maintaining a weight tolerance of less than ±1%. Without this consistency, packaging machines fail, and profit margins shrink.

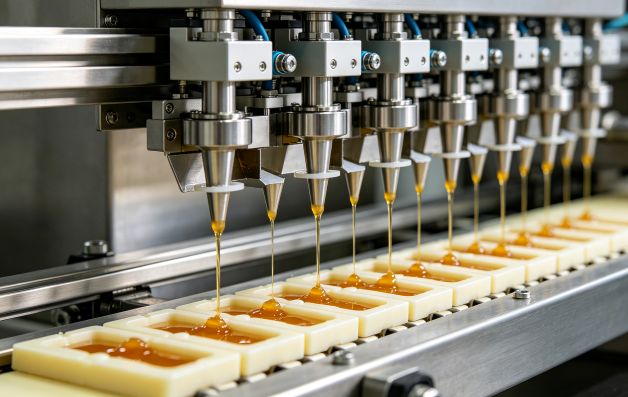

If the pump is the heart, the depositing head is the brain. Modern servo-driven depositors have rendered older pneumatic systems obsolete. Pneumatics rely on air pressure, which is compressible and prone to fluctuations. Servo motors, conversely, offer absolute positional accuracy.
Synchronization: As the conveyor belt moves the molds beneath the head, the servo motor tracks the belt speed via an encoder. It executes a "chasing" motion, synchronizing the nozzle movement with the mold cavities. This ensures that even at speeds of 80 rows per minute, the syrup lands exactly in the center of the mold without splashing over the edges.
No-Drip Technology: Perhaps the most impressive feat is the "clean cut-off." High-quality depositing heads feature spring-loaded shut-off valves or advanced plunger designs. Once the programmed volume is dispensed, the valve snaps shut instantly. This eliminates the dreaded "sugar strings" that connect one candy to the next, reducing scrap rates and keeping the production floor clean.
The mold is not just a passive container; it is an active participant in the cooling process. The transition from syrup to candy requires a carefully managed temperature gradient.
Multi-Zone Cooling: In a typical candy production line, molds pass through different zones. Zone one features aggressive cooling to form a solid "skin" on the candy. Zone two utilizes milder cooling to allow the internal structure to stabilize without causing thermal shock that could lead to cracking. Hard candy molds are typically made of polished aluminum for maximum thermal conductivity, while gummy candy molds often use stainless steel or food-grade silicone to facilitate demolding of sticky gels.
Surface Finish: The internal surface finish of the mold cavity is critical. A mirror polish reduces friction, allowing the candy to release cleanly. Any pitting or roughness in the mold will cause the candy to stick, leading to production jams and deformed products.
Achieving pinpoint accuracy is a sequential process broken down into three distinct stages:
During filling, the depositor must balance speed with control. The nozzle descends slightly into the mold cavity to prevent aeration. The syrup is ejected in a controlled laminar flow. Advanced depositors can perform a "two-stage deposit"—a fast fill followed by a slower, high-precision top-up to ensure the mold is full without overflowing.
Once filled, the mold enters the cooling tunnel. Here, the vacuum cooker’s work is finalized. The rapid removal of latent heat transforms the syrup. For hard candies, this means achieving the "glass transition temperature" quickly. For gummies, it involves the exothermic reaction of gelation. The depositor’s programming must account for the exact dwell time required for the specific recipe.
After setting, the mold opens or inverts. Precision demolding technology takes over. For hard candies, a gentle blast of air or a slight mechanical vibration is often enough. For gummies, retractable pins push the candies out of their cavities. The timing must be perfect; ejecting too early results in shapeless blobs, while ejecting too late can cause the candy to stick permanently to the mold.
While the principles remain the same, the execution differs significantly between product types.
Hard Candy: Requires extreme heat management. The depositor must keep the syrup liquid in the head while ensuring the mold is cold enough to freeze it instantly. The focus is on speed and clean cut-offs.
Gummy Candy: Requires gentle handling. The depositor must prevent shear forces from damaging the delicate gelatin or pectin structure. The focus is on laminar flow and precise temperature control to avoid premature gelling in the nozzle.
In the competitive world of confectionery, precision is not just a technical specification; it is a direct driver of profit. A candy depositing machine that achieves pinpoint accuracy minimizes raw material waste, reduces energy consumption in the cooling tunnel, and ensures that every single candy meets the stringent quality standards of global retailers.
From the rotary vacuum cooker preparing the syrup to the final ejection of the finished product, every component of the depositor is engineered for consistency. When you invest in a high-precision depositor from a trusted manufacturer like Ningbo Sweets Machinery, you aren't just buying a machine; you are investing in the reliability and reputation of your brand.
