A candy line is not a quiet bench where sugar is stirred by hand. It is a high-temperature, high-pressure, high-speed environment where boiling syrup, steam, rotating shafts, servo depositing heads, steel moulds, and daily high-pressure washdown all exist in the same room. On Sweets Machinery lines such as SWM-AFD, SWM-MC, SWM-JC600, SWM-HCD, SWM-JCD, and SWM-LD50, safety devices are not decoration. Each guard, switch, sensor, and procedure exists to stop a specific class of accident before it reaches the operator, the product, or the production schedule.
Understanding what each device actually prevents is the first step toward running a candy plant that is audit-ready, insurable, and safe to work in.
Fixed barrier guards are the most basic and most important safeguard. They sit over gears, chains, couplings, conveyor rollers, batch rollers, rope sizers, and depositor drives.
Risks prevented:
Hair, gloves, sleeves, or fingers caught in rotating parts
Hands drawn into nip points between rollers or belts
Tools or candy scraps falling into transmissions and causing jams
Accidental touch with hot surfaces on cookers and jacketed tanks
OSHA’s machine-guarding rule is clear: machines must protect operators from points of operation, ingoing nip points, rotating parts, and flying chips. A guard that is removed “just for visibility” turns a safe machine into an amputation risk. A real-world candy manufacturer was cited after a worker suffered a fingertip amputation on an unguarded rotary valve.
An interlock is smarter than a fixed plate. If the vacuum chamber door, depositor hood, cooling tunnel panel, or mould-carousel cover is open, the dangerous motion cannot start—or must stop immediately.
Risks prevented:
Reaching into the depositor while pistons are still cycling
Cleaning a mould chain while the conveyor keeps indexing
Servicing a microfilm cooker while the agitator is energized
“I thought it stopped” accidents during shift changes
Interlocks ensure the machine can only run when its safety envelope is closed and verified. On gummy lines like SWM-JC600 / SWM-JCD, this also protects vacuum integrity: an open chamber should never be allowed to heat and pull vacuum at the same time.
E-stops do not “fix” the machine. They freeze the situation before it spreads.
Risks prevented:
Nozzle surge spraying 150°C syrup into an operator’s face
Conveyor dragging a stuck mould stack into the depositor
Clothing caught on a shaft and pulling a worker toward the machine
Unexpected servo motion during manual adjustment
A good candy line places e-stops at the operator panel, discharge end, cooling tunnel entrance/exit, electrical cabinet, and packaging interface. They must be red, reachable, tested regularly, and never used as a normal stop button.
Between the depositor and the mould conveyor, the motion is fast and repeatable. A light curtain creates an invisible wall.
Risks prevented:
Hand enters the deposit zone → piston or nozzle plate strikes the operator
Body leans into the demoulding area while the carousel cycles
Picking “just one stuck candy” during running production
Finger contact with servo-driven cut-off or suck-back mechanisms
Presence-sensing devices interrupt the machine cycle before the hand reaches the danger point. But they only work if nobody tapes them, misaligns them, or disables them to “save time.” Bypassing a safety device is one of the most common and most dangerous violations in food plants.
Hard candy is cooked near 150°C. Gummy masses, jacketed tanks, steam lines, and CIP return lines stay hot for hours.
Risks prevented:
Severe burns from syrup splash or open steam
Touching uninsulated cooker surfaces
Motor overheating leading to insulation failure or fire
Localized sugar combustion if residue builds on heated surfaces
Thermal cutoffs, temperature sensors, insulated panels, and warning labels keep both people and recipe stability protected. On SWM-MC / SWM-JC600, temperature drift does not only burn people—it changes moisture, texture, and shelf life.
Candy lines use steam, compressed air, vacuum, and CIP chemicals. Pressure protection is both a safety feature and a quality feature.
Risks prevented:
Vacuum chamber overpressure popping a door seal
Compressed-air spike slamming a pneumatic cylinder and misaligning nozzles
CIP acid/alkali line back-pressure causing chemical spray
Burst hose or heat exchanger from missing relief path
Relief valves, pressure switches, vacuum sensors, and interlocks prevent energy from releasing in the wrong direction. For export candy plants, this is also where food-safety audits start asking questions.
Candy factories are hostile to electricity. Sugar solution conducts current, steam condenses on enclosures, and washdown hoses hit control panels daily.
Risks prevented:
Electrocution from grounded but wet motor frames
Short circuits that make servos “run away”
VFD faults that suddenly accelerate a conveyor
Sensor errors that desynchronize depositing and indexing
Proper grounding, insulated wiring, sealed terminals, IP-rated enclosures, and safety-relay logic are not extras. On wet zones of SWM-HCD / SWM-JCD, control cabinets and junction boxes should match the washdown rating the process actually demands.
A mould jam should never destroy a gearbox.
Risks prevented:
Crystallized syrup locking a rotor pump while the motor keeps pushing
Conveyor overload tearing belts
Bearing seizure spreading to shafts and couplings
Hidden current creep that burns a motor overnight
Thermal overloads, current monitoring, VFD fault logs, and alarm history turn “something feels wrong” into “the drive stopped it before damage.” This protects uptime more than it protects limbs—but both matter.
Not every safeguard is there to save a finger. Some exist to save the batch.
Risks prevented:
Depositing into an empty or mis-indexed mould
Nozzle half-clog running for 20 minutes before anyone notices
Hopper running dry and the pump running unloaded
Recipe changed but mould format not changed
Mould-present sensors, level switches, nozzle-pressure monitoring, and servo zero checks prevent economic loss: off-weight candy, striped/gummy centre misalignment, and customer complaints.
This is the big one people underestimate.
Guards protect workers during running production. LOTO protects workers during cleaning, unjamming, seal replacement, pump removal, and tool changes.
Risks prevented:
Someone presses “start” while a technician is inside the depositor
Stored pneumatic energy closes a cylinder on a hand
Residual heat or vacuum releases during service
Contract cleaners energize a conveyor to “rinse the guard”
OSHA has repeatedly cited candy manufacturers for exactly this: workers amputated or hospitalized because hazardous energy was not controlled. LOTO isolates electrical, mechanical, hydraulic, pneumatic, thermal, and vacuum energy before anyone puts a hand inside the machine.
Rule every candy plant should paint on the wall:
Guards stop the machine from hurting you while it runs. LOTO stops the machine from waking up while you are inside it.
A guard nobody understands is half a guard.
Risks prevented:
Foreign temp worker opens a 150°C door
Contract cleaner hoses down a live cabinet
New operator mistakes “vacuum fault” for “recipe fault”
Shift handover that says “it’s fine” instead of “it’s locked out”
Bilingual labels, pictograms, orange maintenance handles, and standardized warning colors reduce human error. In candy exports, Chinese/English/Spanish markings are not luxury—they are compliance.
On SWM-AFD, guards and interlocks protect dosing and dissolving drives.
On SWM-MC / SWM-JC600, vacuum-door interlocks, thermal cutoffs, and pressure relief protect both operators and texture consistency.

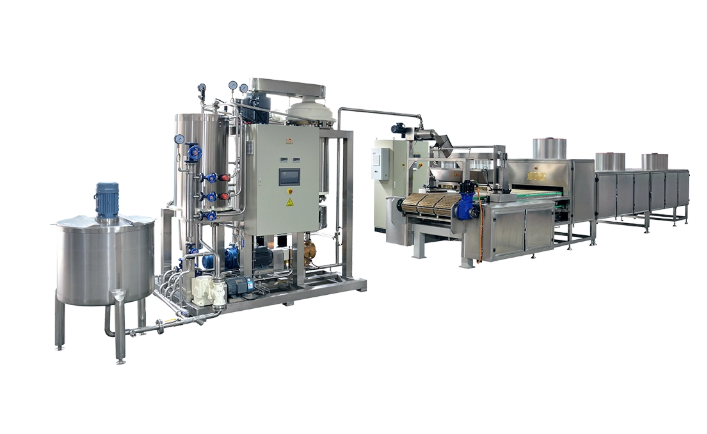

On SWM-HCD, depositor hoods, mould sensors, and e-stops keep high-speed hard-candy deposition safe.

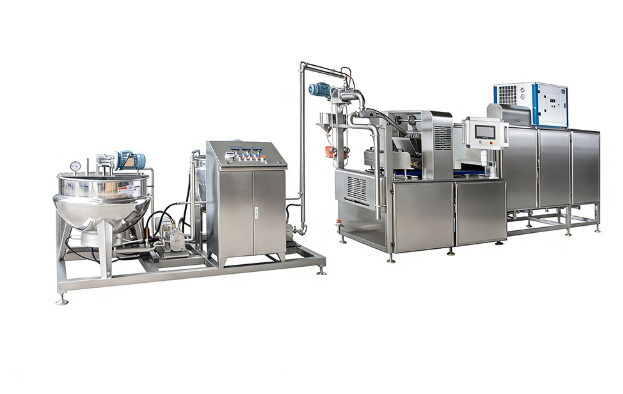

On SWM-JCD / SWM-JCD-S40, light curtains, CIP pressure protection, and recipe interlocks protect gummy quality and people.
On SWM-LD50, small footprint does not mean small risk—lab machines still have hot masses, pumps, and rotating stirrers.
The goal is not “one magic button.” The goal is five layers:
1. Design: enclosed drives, polished edges, food-grade surfaces
2. Barrier: fixed guards and transparent covers
3. Logic: interlocks, recipes, vacuum/temperature/pressure conditions
4. Intervention: e-stop, light curtain, pull cord
5. Energy isolation: LOTO before service
Safety devices do not just prevent injuries. They prevent:
Unplanned downtime
Recalls from contaminated cleaning
Insurance premium spikes
Failed BRC / IFS / FDA / OSHA audits
Training loss when the only experienced operator gets hurt
A candy plant that treats guards as “slowing us down” usually pays for it later in downtime, fines, and lost orders. A plant that treats safeguarding as part of process control gets steadier weight, cleaner audits, and lower turnover.
Candy machine safety guards are not one thing. They are a system:
Fixed guards → no contact with rotating parts
Interlocks → no running with the door open
E-stops → no escalation of emergencies
Light curtains → no hand in the high-speed zone
Thermal/pressure protection → no burn, no blowout
Electrical safeguarding → no shock in a wet plant
Overload protection → no jam becomes a breakdown
Process sensors → no silent quality loss
LOTO → no surprise startup during service
If you are specifying or auditing a candy line, do not ask only “does it make candy?” Ask: “What class of accident does each device exist to prevent—and what happens when somebody disables it?”
That question separates a candy machine from a candy production system.
